CARDONE
668175

第三方数据CARDONE : 668175

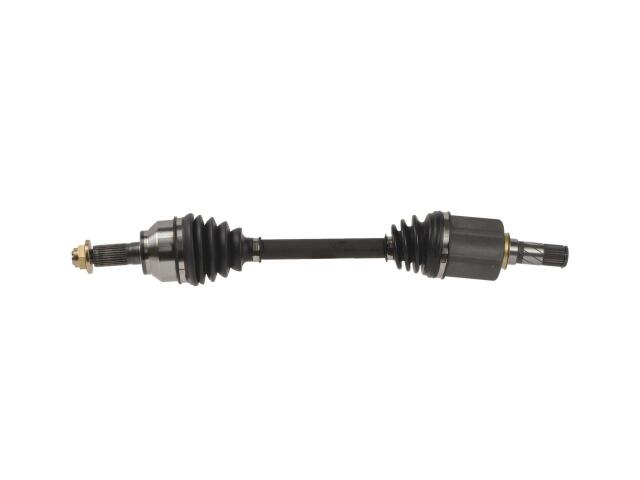

CV Axle
CARDONE : 668175

Axle Nut Locking Type: Stake
Compressed Length (IN): 25"
Input Shaft Connection Style: Splined
Input Shaft Spline Count: 28
Output Shaft Connection Style: Splined
Output Shaft Spline Count: 28
Package Contents: Complete Axle, Instruction Sheet
Product Condition: New
Spindle Nut Hex Head Size: 32mm
Spindle Nut Included: Yes
Spindle Nut Thread Size: M22 x 1.5

适用车型

MAZDA (2)

3 (3)

2.0L L4 (9)

2005	Front Left; Manual trans.; From 01/06/2005 GG2625600F, GG2625600H, GG2825600D, GG2825600H, GG3125600B, GG3125600C, GG3125600D, GG3425600F, GG3425600G, GG4525600B, GG4525600D, GG6125600, GG6125600A, GG6225600, GG6225600B

2006	Front Left; Manual Trans. GG2625600F, GG2625600H, GG2825600D, GG2825600H, GG3125600B, GG3125600C, GG3125600D, GG3425600F, GG3425600G, GG4525600B, GG4525600D, GG6125600, GG6125600A, GG6225600, GG6225600B

2007	Front Left; Manual Trans. GG2625600F, GG2625600H, GG2825600D, GG2825600H, GG3125600B, GG3125600C, GG3125600D, GG3425600F, GG3425600G, GG4525600B, GG4525600D, GG6125600, GG6125600A, GG6225600, GG6225600B

2008	Front Left; Manual Trans. GG2625600F, GG2625600H, GG2825600D, GG2825600H, GG3125600B, GG3125600C, GG3125600D, GG3425600F, GG3425600G, GG4525600B, GG4525600D, GG6125600, GG6125600A, GG6225600, GG6225600B

2009	Front Left; Manual Trans. GG2625600F, GG2625600H, GG2825600D, GG2825600H, GG3125600B, GG3125600C, GG3125600D, GG3425600F, GG3425600G, GG4525600B, GG4525600D, GG6125600, GG6125600A, GG6225600, GG6225600B

2010	Front Left GG2625600F, GG2625600H, GG2825600D, GG2825600H, GG3125600B, GG3125600C, GG3125600D, GG3425600F, GG3425600G, GG4525600B, GG4525600D, GG6125600, GG6125600A, GG6225600, GG6225600B

2011	Front Left GG2625600F, GG2625600H, GG2825600D, GG2825600H, GG3125600B, GG3125600C, GG3125600D, GG3425600F, GG3425600G, GG4525600B, GG4525600D, GG6125600, GG6125600A, GG6225600, GG6225600B

2012	Front Left; Engine VIN F GG2625600F, GG2625600H, GG2825600D, GG2825600H, GG3125600B, GG3125600C, GG3125600D, GG3425600F, GG3425600G, GG4525600B, GG4525600D, GG6125600, GG6125600A, GG6225600, GG6225600B

2013	Front Left; Engine VIN F GG2625600F, GG2625600H, GG2825600D, GG2825600H, GG3125600B, GG3125600C, GG3125600D, GG3425600F, GG3425600G, GG4525600B, GG4525600D, GG6125600, GG6125600A, GG6225600, GG6225600B

2.3L L4 (5)

2.5L L4 (4)

5 (2)

2.3L L4 (5)

2.5L L4 (4)

参考号

厂商	号码
AUTOPART INTERNATIONAL	1700-23021*

OE号码

品牌	号码
OE	66-817*
OE	GG2625600*
OE	GG2625600*
OE	GG2825600*
OE	GG2825600*
OE	GG3125600*

品牌	号码
OE	GG3125600*
OE	GG3125600*
OE	GG3425600*
OE	GG3425600*
OE	GG4525600*

品牌	号码
OE	GG4525600*
OE	GG612560*
OE	GG6125600*
OE	GG622560*
OE	GG6225600*
