GM GENUINE
55509122

第三方数据GM GENUINE : 55509122

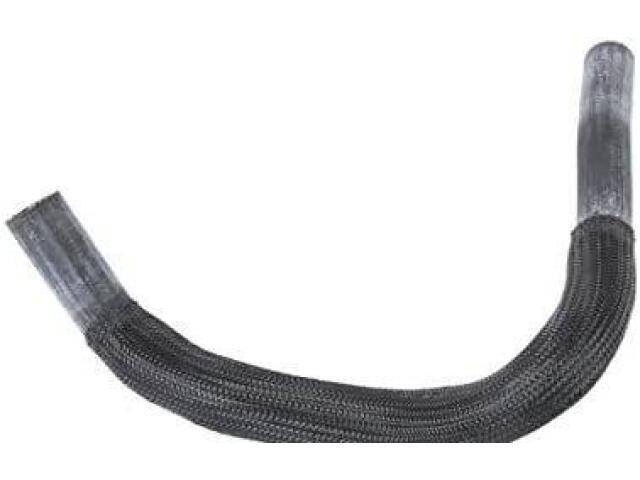

Coolant Hose / Pipe
GM GENUINE : 55509122

Centerline Length (IN): 7.61
Centerline Length (MM): 193.41
Contains Spring: Yes
Coolant Hose Color: Black
Coolant Hose Heat Shield Included: No
Coolant Hose Type: Single
End 1 Inside Diameter (IN): 1.13
End 1 Inside Diameter (MM): 28.7
End 2 Inside Diameter (IN): 0.79
End 2 Inside Diameter (MM): 20
Hose End 1 Inside Diameter (IN): 1
Hose End 1 Inside Diameter (MM): 25.3
Hose End 1 Outside Diameter (IN): 1.4
Hose End 1 Outside Diameter (MM): 35.5
Hose End 2 Inside Diameter (IN): 0.79
Hose End 2 Inside Diameter (mm): 20
Hose End 2 Outside Diameter (IN): 1.06
Hose End 2 Outside Diameter (MM): 27
Hose Shape: Molded Assembly
Material: Rubber
Material Thickness (IN): 0.28
Material Thickness (MM): 7
Protective Sleeve Attached: No

适用车型

BUICK (1)
