GM GENUINE
55487348

第三方数据GM GENUINE : 55487348

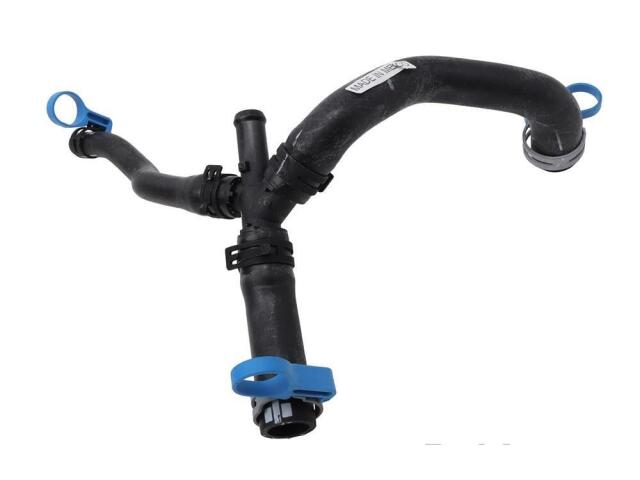

Coolant Hose / Pipe
GM GENUINE : 55487348

Axis 1 Length (IN): 7.98
Axis 1 Length (MM): 202.68
Axis 2 Length (IN): 8.08
Axis 2 Length (MM): 205.12
Branch Quantity: 2
Centerline Length (IN): 8.46
Centerline Length (MM): 214.8
Color: Black
Contains Spring: No
Coolant Hose Color: Black
Coolant Hose Heat Shield Included: No
Coolant Hose Type: Single
End 1 Inside Diameter (IN): 0.75
End 1 Inside Diameter (MM): 19
End 2 Inside Diameter (IN): 0.43
End 2 Inside Diameter (MM): 11
End 3 Inside Diameter (IN): 0.94
End 3 Inside Diameter (MM): 24
End 4 Inside Diameter (IN): 0.43
End 4 Inside Diameter (MM): 11
Hose End 1 Inside Diameter (IN): 0.75
Hose End 1 Inside Diameter (MM): 19
Hose End 1 Outside Diameter (IN): 1.02
Hose End 1 Outside Diameter (MM): 26
Hose End 2 Inside Diameter (IN): 0.43
Hose End 2 Inside Diameter (mm): 11
Hose End 2 Outside Diameter (IN): 0.71
Hose End 2 Outside Diameter (MM): 18
Hose Shape: Molded Assembly
Material: Rubber
Material Thickness (IN): 0.28
Material Thickness (MM): 7
Protective Sleeve Attached: No

适用车型

CADILLAC (3)
