GM GENUINE
22922980

第三方数据GM GENUINE : 22922980

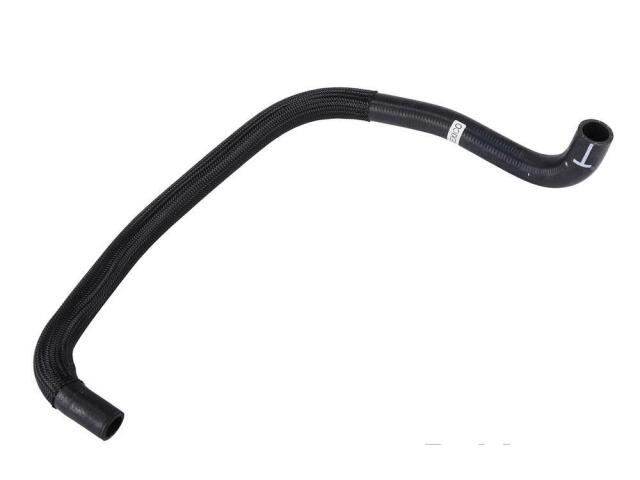

Coolant Hose / Pipe
GM GENUINE : 22922980

Axis 1 Length (IN): 12.449
Axis 1 Length (MM): 316.2
Axis 2 Length (IN): 12.149
Axis 2 Length (MM): 308.58
Axis 3 Length (IN): 6.676
Axis 3 Length (MM): 169.56
Centerline Length (IN): 24.952
Centerline Length (MM): 633.79
Color: Black
Contains Spring: No
Coolant Hose Color: Black
Coolant Hose Heat Shield Included: Yes
Coolant Hose Type: Single
End 1 Inside Diameter (IN): 0.6
End 1 Inside Diameter (MM): 15.24
End 2 Inside Diameter (IN): 0.757
End 2 Inside Diameter (MM): 19.24
Hose End 1 Inside Diameter (IN): 0.76
Hose End 1 Inside Diameter (MM): 19.2
Hose End 1 Outside Diameter (IN): 1.02
Hose End 1 Outside Diameter (MM): 26
Hose End 2 Inside Diameter (IN): 0.6
Hose End 2 Inside Diameter (mm): 15.2
Hose End 2 Outside Diameter (IN): 0.87
Hose End 2 Outside Diameter (MM): 22.2
Hose Shape: Molded Assembly
Material: Rubber
Protective Sleeve Attached: Yes

适用车型

BUICK (2)

CHEVROLET (2)
