DORMAN
626331

第三方数据DORMAN : 626331

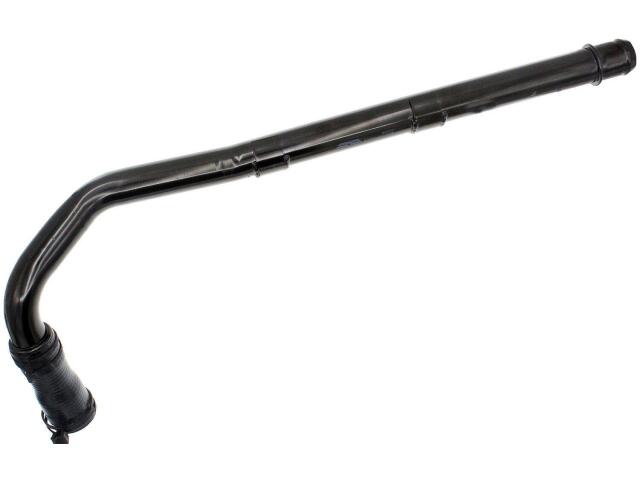

Coolant Hose / Pipe
DORMAN : 626331

Coolant Hose Heat Shield Included: No
Coolant Hose Protective Sleeve Included: No
Coolant Hose Type: Formed
End 1 Inside Diameter (MM): 36.5
End 1 Type: Hose
End 2 Inside Diameter (MM): 28
End 2 Type: Hose Barb
Finish: Black
Gasket Or Seal Required: No
Hose End (1) Outside Diameter (IN): 44.5 mm
Hose End (2) Outside Diameter (IN): 33.5 mm
Inside Diameter (MM): 28.75
Length (MM): 755
Maximum Working Pressure (psi): 100 PSI
Mount Bracket Hole Diameter (MM): 7.1
Mount Bracket Quantity: 2
Mounting Bracket Included: Yes
Outside Diameter (MM): 31.75
Package Contents: 1 Heater Hose Assembly
Shape: Molded Assembly

适用车型

CHRYSLER (1)

JEEP (1)

OE号码

品牌	号码
OE	626-33*

品牌	号码
OE	68102127A*
