GM GENUINE
84390533

第三方数据GM GENUINE : 84390533

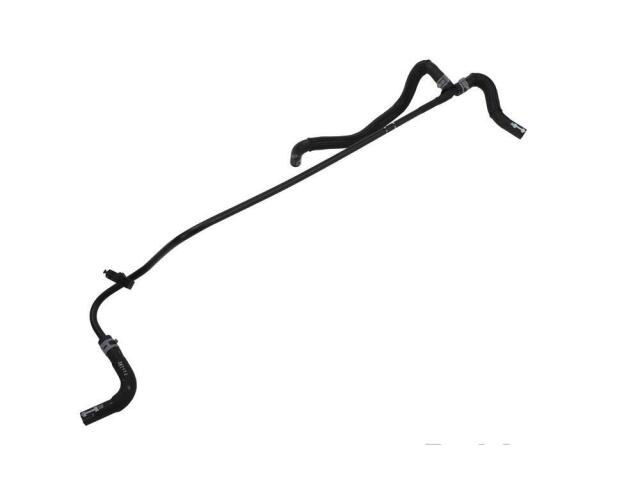

Coolant Bleed Hose
GM GENUINE : 84390533

Branch Quantity: 1
Centerline Length (IN): 35.38
Centerline Length (MM): 898.74
Clamps Included: Yes
Color: Black
Contains Spring: No
End 1 Inside Diameter (IN): 0.29
End 1 Inside Diameter (MM): 7.25
End 1 Outside Diameter (IN): 0.56
End 1 Outside Diameter (MM): 14.25
End 2 Inside Diameter (IN): 0.29
End 2 Inside Diameter (MM): 7.25
End 2 Outside Diameter (IN): 0.56
End 2 Outside Diameter (MM): 14.25
End 3 Inside Diameter (IN): 0.29
End 3 Inside Diameter (MM): 7.25
End 3 Outside Diameter (IN): 0.56
End 3 Outside Diameter (MM): 14.25
Hose Material: Plastic
Hose Shape: Molded Assembly
Inside Diameter (IN): 0.29
Inside Diameter (MM): 7.25
Length Axis 1 (IN): 29.39
Length Axis 1 (MM): 746.51
Length Axis 2 (IN): 13.03
Length Axis 2 (MM): 152.23
Length Axis 3 (IN): 0.04
Length Axis 3 (mm): 331.02
Material: Rubber,Plastic
Outside Diameter (IN): 0.56
Outside Diameter (MM): 14.25
Shape: Molded Assembly
Wall Thickness (IN): 0.28
Wall Thickness (MM): 7

适用车型

CHEVROLET (1)

GMC (1)
