GM GENUINE
11603090

第三方数据GM GENUINE : 11603090

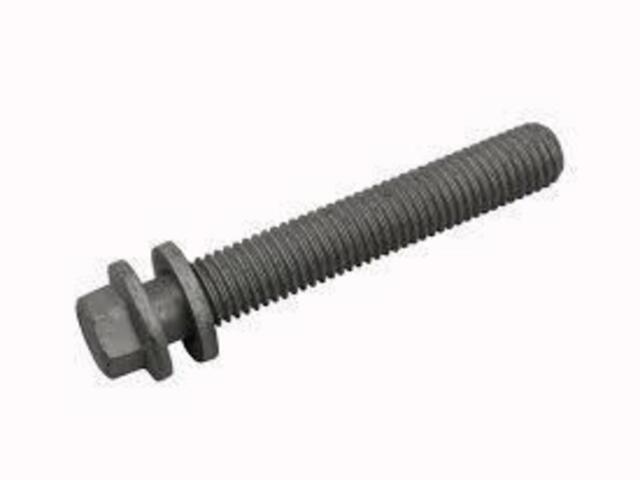

Control Arm Anchor Bolt
GM GENUINE : 11603090

Bolt Grade: 10.9
Finish: Zinc
Head Diameter (IN): 1.61
Head Diameter (MM): 41
Head Drive Type: Hex
Head Shape: Round
Head Tool Size: 24
Material: Steel
Overall Length (IN): 5.12
Overall Length (MM): 130
Partially Threaded: Yes
SAE or Metric: Metric
Self Drilling: No
Self Tapping: No
Shank Diameter (MM): 16.5
Shank Length (IN): 1.18
Shank Length (mm): 30
Thread Diameter (MM): 18
Thread Direction: Clockwise
Thread Length (MM): 80
Thread Pitch (mm): 2.5
Thread Type: Coarse
Threads Per Inch: 10.51
Type: Flange
Under Head Length (IN): 4.33
Under Head Length (MM): 110
Washer Attached: No

适用车型

CADILLAC (1)

CHEVROLET (2)

SUBURBAN (3)

TAHOE (3)

GMC (2)

YUKON (3)

YUKON XL (3)
