SEALED POWER
61020CP

第三方数据SEALED POWER : 61020CP

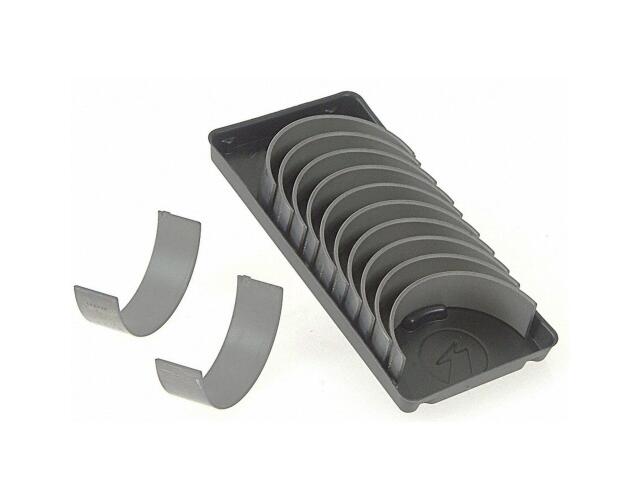

Connecting Rod Bearing
SEALED POWER : 61020CP

Housing Bore Max (MM): 60.3430
Housing Bore Max (in): 2.3757
Housing Bore Min (MM): 60.3170
Housing Bore Min (in): 2.3747
Oil Clearance Max (MM): 0.0910
Oil Clearance Max (in): 0.0036
Oil Clearance Min (MM): 0.0250
Oil Clearance Min (in): 0.0010
Overall Length Max (MM): 19.1300
Overall Length Max (in): 0.7530
Standard Shaft Max (MM): 57.1450
Standard Shaft Max (in): 2.2498
Standard Shaft Min (MM): 57.1300
Standard Shaft Min (in): 2.2492
Wall Thickness Max (IN): 0.0620
Wall thickness Max (MM): 1.5750

适用车型

CHEVROLET (6)

GMC (6)

OE号码

品牌	号码
OE	6-1020C*

品牌	号码
OE	6-1020CP.25M*
