GM GENUINE
23154239

第三方数据GM GENUINE : 23154239

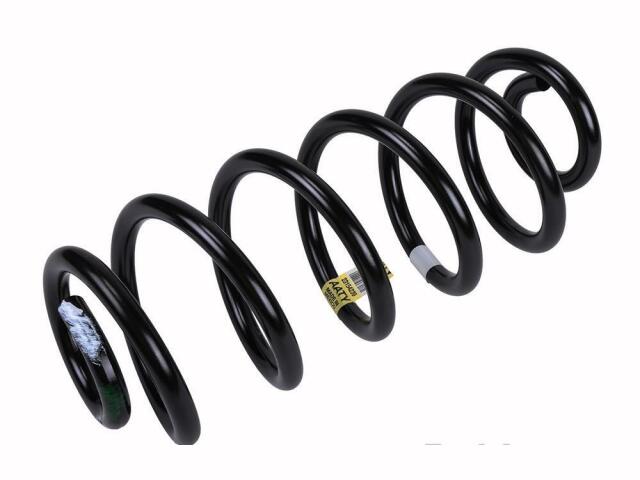

Coil Spring
GM GENUINE : 23154239

Coil Quantity: 7
Color: Black
End 1 Outside Diameter (IN): 6.118
End 1 Outside Diameter (MM): 155.4
End 1 Type: Round
End 2 Type: Round
Finish: Coated
Free Height (in): 15.35
Free Height (mm): 390
Installed Height (in): 12.08
Installed Height (mm): 306.9
Material: Steel
Maximum Outside Diameter (IN): 6.118
Maximum Outside Diameter (MM): 155.4
Outside Diameter (IN): 6.12
Outside Diameter (MM): 155.4
Seat Included: No
Spring Rate (KP): 4.58
Spring Rate (PP): 256.95
Spring Type: Coil
Suspension Grade Type: Standard
Wire Diameter (IN): 0.63
Wire Diameter (MM): 15.95

适用车型

CADILLAC (1)

CHEVROLET (1)

GMC (1)
