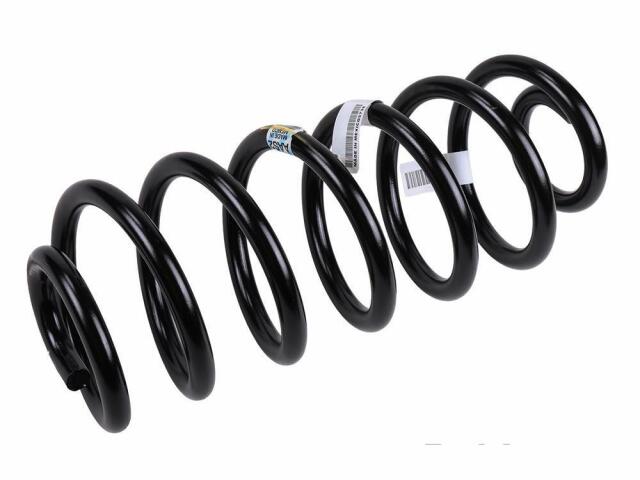

Coil Spring
GM GENUINE : 23152539

Coil Quantity: 8
Color: Black
End 1 Outside Diameter (IN): 6.118
End 1 Outside Diameter (MM): 155.4
End 1 Type: Round
End 2 Type: Round
Finish: Coated
Free Height (in): 15.59
Free Height (mm): 396
Installed Height (in): 12.08
Installed Height (mm): 306.9
Material: Steel
Maximum Outside Diameter (IN): 6.118
Maximum Outside Diameter (MM): 155.4
Outside Diameter (IN): 6.12
Outside Diameter (MM): 155.4
Seat Included: No
Spring Rate (KP): 4.339
Spring Rate (PP): 243
Spring Type: Coil
Suspension Grade Type: Standard
Wire Diameter (IN): 0.64
Wire Diameter (MM): 16.2

适用车型

CADILLAC (1)

CHEVROLET (2)

GMC (2)
