GM GENUINE
20801222

第三方数据GM GENUINE : 20801222

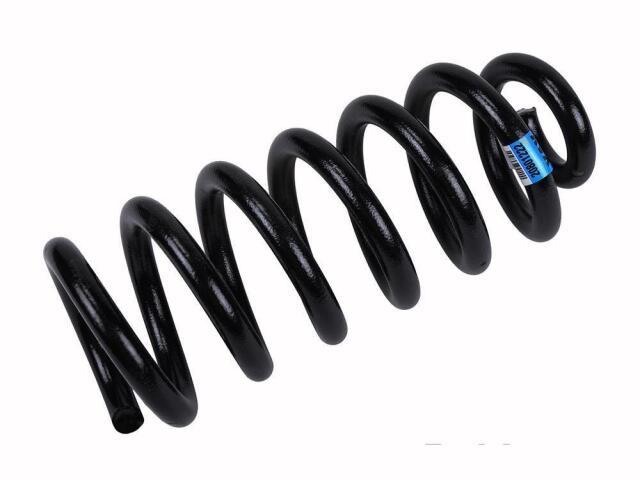

Coil Spring
GM GENUINE : 20801222

Coil Quantity: 7
Color: Black
End 1 Type: Open
End 2 Outside Diameter (IN): 4.92
End 2 Outside Diameter (MM): 125.04
End 2 Type: Open
Free Height (in): 10.1
Free Height (mm): 256.54
Inside Diameter (IN): 4.3
Inside Diameter (MM): 109.22
Material: Steel
Maximum Inside Diameter (IN): 4.3
Maximum Inside Diameter (MM): 109.17
Maximum Outside Diameter (IN): 4.94
Maximum Outside Diameter (MM): 125.37
Outside Diameter (IN): 4.94
Outside Diameter (MM): 125.48
Seat Included: No
Spring Type: Coil
Wire Diameter (IN): 0.64
Wire Diameter (MM): 16.26

适用车型

CADILLAC (1)
