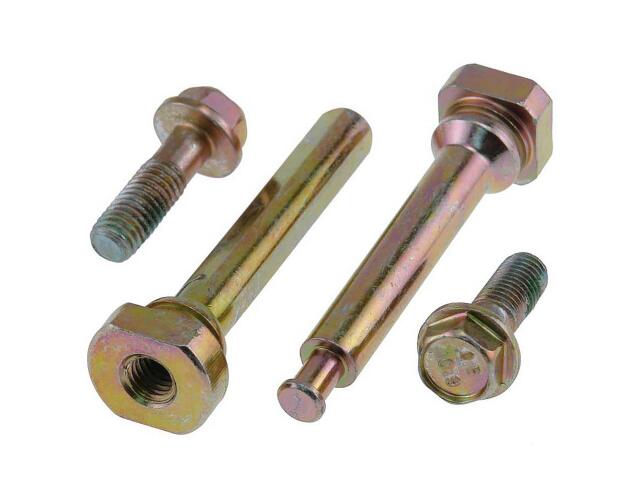

Caliper Slide Pin
CARLSON : H5099

Caliper Bolt Head Type: Hex
Color: Zinc
Diameter (IN): Bolt: 2/7 Pin: 3/8
Dust Boots Included: No
Head Size (IN): 1/2
Head Size (MM): 11.9
Instructions Included: No
Length (IN): Bolt: 1-2/7 Pin: 2-4/5
Length (MM): Bolt: 33 Pin: 71.1
Material: Steel
Number of Bolts: 2
Nuts Included: No
Shoulder Length (IN): 1/4
Sleeve Included: No
Thread Length (IN): 3/4
Thread Length (MM): 19
Thread Size: M8-1.25
Washers Included: No

适用车型

CADILLAC (3)

CTS (1)

SRX (2)

STS (3)

PONTIAC (1)
