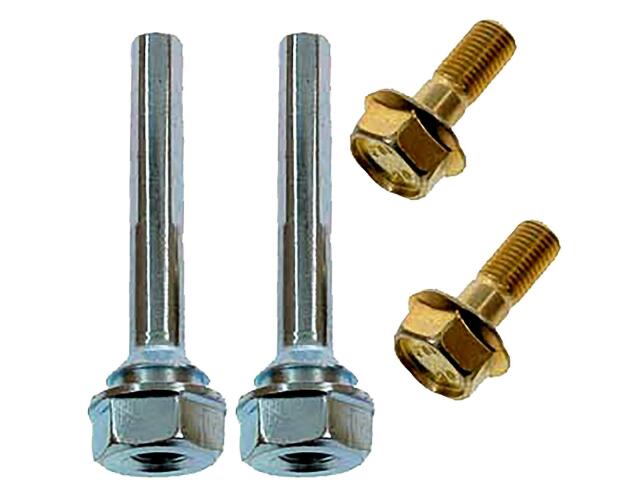

Caliper Slide Pin
CARLSON : 14263

Caliper Bolt Head Type: Hex
Color: Zinc
Diameter (IN): Bolt: 1/3 Pin: 1/3
Dust Boots Included: No
Head Size (IN): 5/9, 2/3
Head Size (MM): 14, 17
Instructions Included: No
Length (IN): Bolt: 1-1/7, Pin: 2-3/5
Length (MM): Bolt: 29.2, Pin: 66
Material: Steel
Number of Bolts: 2
Nuts Included: No
Shoulder Length (IN): 1/4
Sleeve Included: No
Thread Length (IN): 1/2
Thread Length (MM): 12.7
Thread Size: M8-1.0
Washers Included: No

适用车型

CADILLAC (2)

ATS (4)

CTS (3)
