POWER STOP
S2942B

第三方数据POWER STOP : S2942B

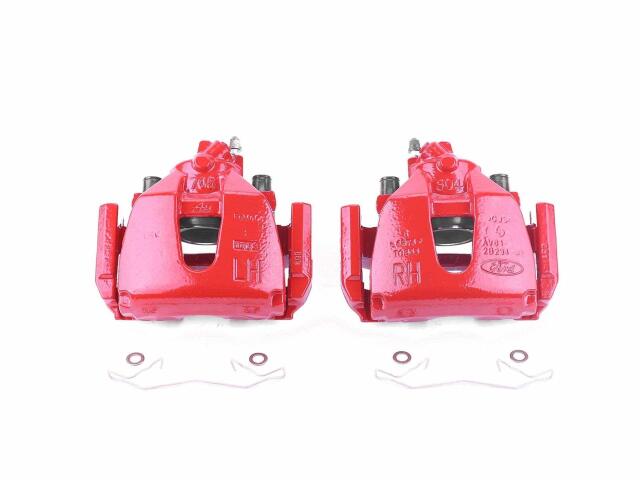

Caliper
POWER STOP : S2942B

Abutment Clips Included: No
Anti-Rattle Spring Included: Yes
Bleeder Screw Included: Yes
Bleeder Screw Thread Diameter (MM): 8.0
Bleeder Screw Thread Size: M8 x 1.25
Caliper Casting Material: Cast Iron
Caliper Color: Red
Caliper Finish: Powder Coated
Caliper Slides Included: Yes
Caliper Type: Floating
Inlet Fitting Type: Tube Seat
Inlet Thread Diameter (MM): 10.0
Inlet Thread Pitch (MM): 1.0
Inlet Thread Size: M10 x 1.0
Installation Instructions Included: No
Mounting Bolt Included: No
Mounting Bracket Included: Yes
Mounting Hardware Included: No
Mounting Hole Diameter (MM): 12.0
Mounting Hole Thread Diameter (MM): 1.25
Pad Wear Sensor Included: No
Pads Included: No
Piston Diameter (mm): 57.00
Piston Material: Steel
Piston Quantity: 1

适用车型

MAZDA (1)
