POWER STOP
L5069

第三方数据POWER STOP : L5069

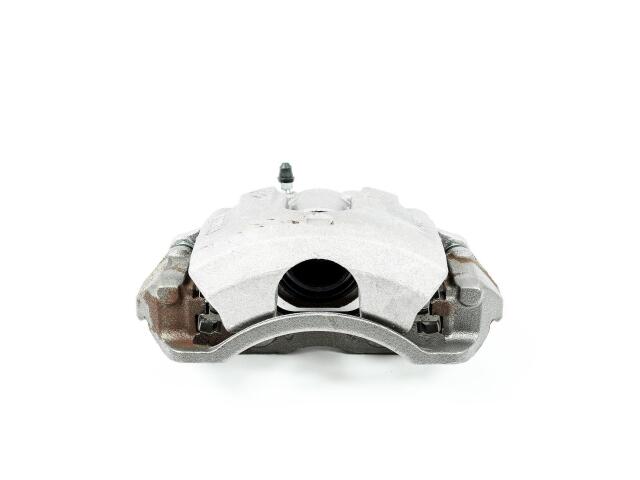

Caliper
POWER STOP : L5069

Abutment Clips Included: Yes
Anti-Rattle Spring Included: No
Bleeder Screw Included: Yes
Bleeder Screw Quantity: 1
Bleeder Screw Thread Diameter (MM): 10.0
Bleeder Screw Thread Size: M10 x 1.0
Caliper Casting Material: Aluminum
Caliper Color: Gray
Caliper Finish: Neutral
Caliper Slides Included: Yes
Caliper Type: Floating
Inlet Fitting Type: Banjo
Inlet Thread Diameter (MM): 10.0
Inlet Thread Pitch (MM): 1.5
Inlet Thread Size: M10 x 1.5
Mounting Bolt Included: No
Mounting Bracket Included: Yes
Mounting Hardware Included: No
Mounting Hole Diameter (MM): 12.0
Mounting Hole Thread Diameter (MM): 1.75
Pad Wear Sensor Included: No
Pads Included: No
Piston Diameter (mm): 56.90
Piston Material: Phenolic
Piston Quantity: 1

适用车型

FORD (1)
