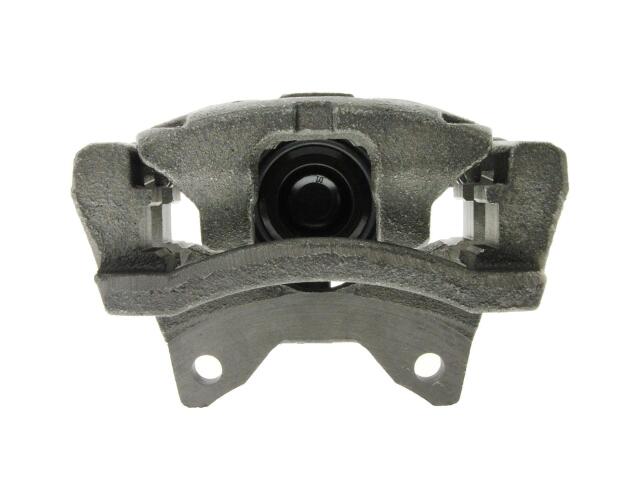

Caliper
FVP : 14167517

Abutment Clips Included: Yes
Air Gap: 100.5mm
Bare Bracket Weight lbs: 2.8
Bleeder Install Thread Count in: 5.5
Bleeder Screw Included: Yes
Bleeder Screw Thread Diameter: 10.000 MM
Bleeder Screw Thread Size: M10-1.00
Body Air Gap: 48.5mm
Bracket #: 743.67517
Bracket Air Gap: 21.0mm
Caliper Casting Material: Cast Iron
Caliper Color: Gray
Caliper Manufacturer: TRW
Caliper Type: Floating
Casting Number: 15841101; 16018501; 18018501; 48
Inlet Fitting Type: Banjo
Inlet Thread Diameter: 10.000 MM
Inlet Thread Size: M10-1.00
Mount Spread - Ctr2Ctr: 90.0mm
Mounting Bracket Included: Yes
Mounting Hardware Included: No
Mounting Hole Diameter: 0.472 in
Pad Wear Sensor Included: No
Pads Included: No
Piston Diameter: 48.000 mm
Piston Material: Phenolic
Piston Quantity: 1
Published Bore Size: 48
Rust Preventative Coating: Yes

适用车型

JEEP (3)

DODGE (1)

OE号码

品牌	号码
OE	141-6751*
