第三方数据FVP : 14167512

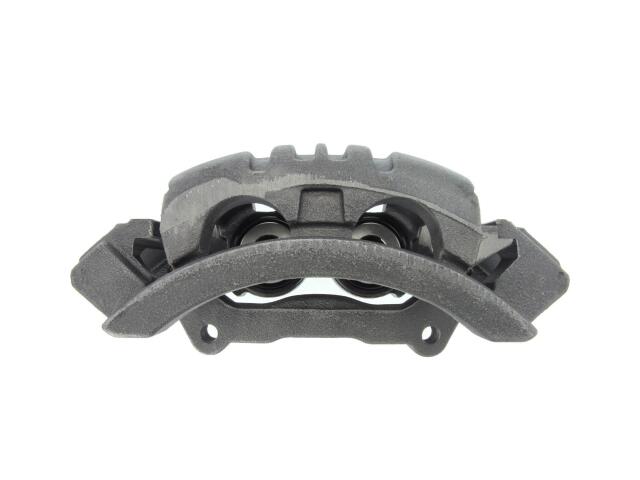

Caliper
FVP : 14167512

Abutment Clips Included: Yes
Air Gap: 100.5mm
Bare Bracket Weight lbs: 5.78
Bleeder Screw Included: Yes
Bleeder Screw Thread Diameter: 10.000 MM
Bleeder Screw Thread Size: M10-1.00
Bracket #: 147.67511
Caliper Casting Material: Cast Iron
Caliper Color: Gray
Caliper Type: Floating
Casting Number: 135444; 13544402; 145993; 14599301
Inlet Fitting Type: Banjo
Inlet Thread Diameter: 10.000 MM
Inlet Thread Size: M10-1.00
Mounting Bracket Included: Yes
Mounting Hardware Included: No
Pad Wear Sensor Included: No
Pads Included: No
Piston Diameter: 1.772 IN
Piston Material: Phenolic
Piston Quantity: 2
Published Bore Size: 45
Rust Preventative Coating: Yes

适用车型

DODGE (3)

RAM 1500 PICKUP (3)

RAM 2500 PICKUP (3)

RAM 3500 PICKUP (3)

OE号码

品牌	号码
OE	141-6751*
