第三方数据FVP : 14165563

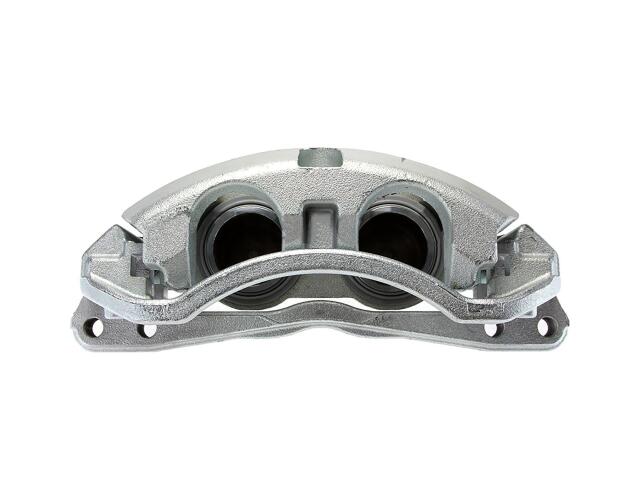

Caliper
FVP : 14165563

Abutment Clips Included: Yes
Bare Bracket Weight lbs: 9.05
Bare Caliper Body Weight lbs: 20.10
Bleeder Install Thread Count in: 4.5
Bleeder Screw Included: Yes
Bleeder Screw Thread Diameter: 0.375 in
Bleeder Screw Thread Size: 3/8"-24
Body Air Gap: 86.0mm
Bracket #: 743.65107
Bracket Air Gap: 45.0mm
Caliper Casting Material: Cast Iron
Caliper Color: Gray
Caliper Manufacturer: TRW
Caliper Type: Floating
Casting Number: 64; K361I; 188824
Inlet Fitting Type: Banjo
Inlet Thread Diameter: 0.375 in
Inlet Thread Size: 3/8"-24
Mount Spread - Ctr2Ctr: Inner = 250.0mm, Outer = 327.0mm
Mount Thread Size mm: M16-2.00
Mounting Bracket Included: Yes
Mounting Hardware Included: No
Pad Wear Sensor Included: No
Pads Included: No
Piston Diameter: 2.520 in
Piston Material: Steel
Piston Quantity: 2
Published Bore Size: 64
Rust Preventative Coating: Yes

适用车型

FORD (3)

F-450 SUPER DUTY (3)

F-550 SUPER DUTY (3)

F-600 SUPER DUTY (2)
