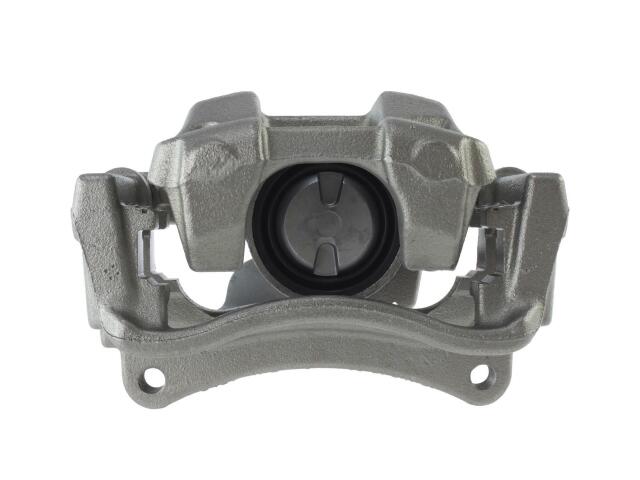

Caliper
FVP : 14165559

Abutment Clips Included: Yes
Bleeder Install Thread Count in: 6
Bleeder Screw Included: Yes
Bleeder Screw Thread Diameter: 10.000 MM
Bleeder Screw Thread Size: M10-1.00
Body Air Gap: 57.0mm
Bracket #: 743.65559
Bracket Air Gap: 20.0mm
Caliper Casting Material: Cast Iron
Caliper Color: Gray
Caliper Manufacturer: Bosch
Caliper Type: Floating
Casting Number: 2552
Inlet Fitting Type: Banjo
Inlet Thread Diameter: 10.000 MM
Inlet Thread Size: M10-1.00
Mount Spread - Ctr2Ctr: 140.0mm
Mount Thread Size mm: M12-1.75
Mounting Bracket Included: Yes
Mounting Hardware Included: No
Pad Wear Sensor Included: No
Pads Included: No
Piston Diameter: 2.126 in
Piston Material: Steel
Piston Quantity: 1
Published Bore Size: 54
Rust Preventative Coating: Yes

适用车型

FORD (3)

TRANSIT 150 (3)

TRANSIT 250 (3)

TRANSIT 350 (3)

OE号码

品牌	号码
OE	141-6555*
