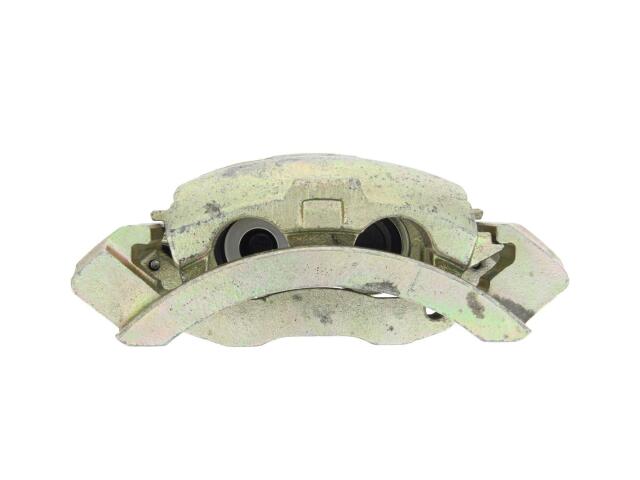

Caliper
FVP : 14165509

Abutment Clips Included: Yes
Air Gap: 100.5mm
Bare Bracket Weight lbs: 6.2
Bleeder Screw Included: Yes
Bleeder Screw Thread Diameter: 0.375 in
Bleeder Screw Thread Size: 3/8"-24
Bracket #: 147.65509
Caliper Casting Material: Cast Iron
Caliper Color: Gray
Caliper Type: Floating
Casting Number: 132705; KH132705
Inlet Fitting Type: Banjo
Inlet Thread Diameter: 0.375 in
Inlet Thread Size: 3/8"-24
Mount Thread Size mm: M14-2.00
Mounting Bracket Included: Yes
Mounting Hardware Included: No
Pad Wear Sensor Included: No
Pads Included: No
Piston Diameter: 1.732 in
Piston Material: Phenolic
Piston Quantity: 2
Published Bore Size: 44
Rust Preventative Coating: Yes

适用车型

FORD (3)

OE号码

品牌	号码
OE	141-6550*
