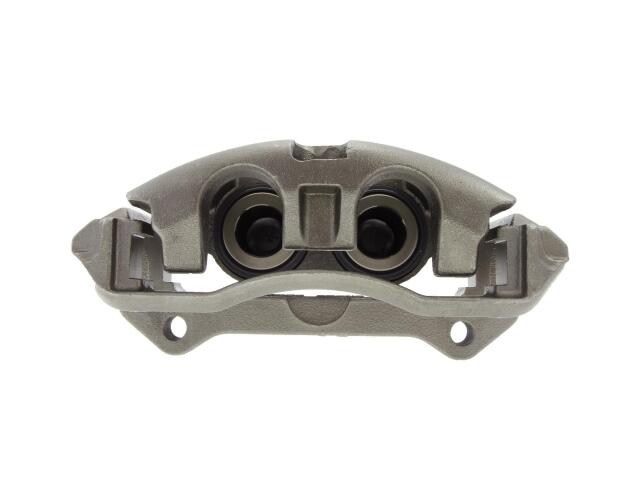

Caliper
FVP : 14165099

Abutment Clips Included: Yes
Bare Bracket Weight lbs: 5.30
Bleeder Install Thread Count in: 4.5
Bleeder Screw Included: Yes
Bleeder Screw Thread Diameter: 0.375 in
Bleeder Screw Thread Size: 3/8"-24
Body Air Gap: 73.5mm
Bracket #: 743.65095
Bracket Air Gap: 40.0mm
Caliper Casting Material: Cast Iron
Caliper Color: Gray
Caliper Manufacturer: TRW
Caliper Type: Floating
Casting Number: 18191301
Inlet Fitting Type: Banjo
Inlet Thread Diameter: 10.000 MM
Inlet Thread Size: M10-1.00
Mount Spread - Ctr2Ctr: 180.0mm
Mount Thread Size mm: M16-1.50
Mounting Bracket Included: Yes
Mounting Hardware Included: No
Pad Wear Sensor Included: No
Pads Included: No
Piston Diameter: 54.000 MM
Piston Material: Phenolic
Piston Quantity: 2
Published Bore Size: 54
Rust Preventative Coating: Yes

适用车型

FORD (1)

F-150 (8)

2.7L V6 Turbocharged (6)

3.0L V6 DIESEL Turbocharged (3)

3.3L V6 (3)

3.5L V6 (3)

3.5L V6 Turbocharged (9)

3.7L V6 (3)

5.0L V8 (9)

6.2L V8 (3)

OE号码

品牌	号码
OE	141-6509*
