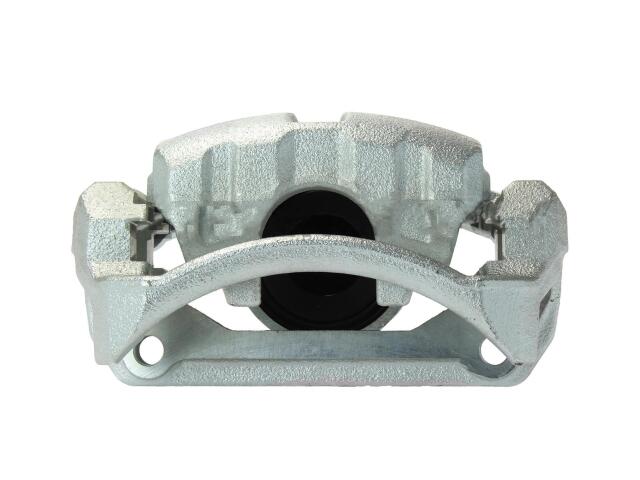

Caliper
FVP : 14162230

Abutment Clips Included: Yes
Bare Bracket Weight lbs: 2.40
Bare Caliper Body Weight lbs: 5.45
Bleeder Install Thread Count in: 4.5
Bleeder Screw Included: Yes
Bleeder Screw Thread Diameter: 10.000 MM
Bleeder Screw Thread Size: M10-1.00
Body Air Gap: 58.0mm
Bracket #: 743.62229
Bracket Air Gap: 25.0mm
Caliper Casting Material: Cast Iron
Caliper Color: Gray
Caliper Manufacturer: MOBIS
Caliper Type: Floating
Casting Number: HM11
Inlet Fitting Type: Banjo
Inlet Thread Diameter: 10.000 MM
Inlet Thread Size: M10-1.00
Mount Spread - Ctr2Ctr: 128.0mm
Mount Thread Size mm: M12-1.25
Mounting Bracket Included: Yes
Mounting Hardware Included: No
Pad Wear Sensor Included: No
Pads Included: No
Piston Diameter: 2.047 in
Piston Material: Phenolic
Piston Quantity: 1
Published Bore Size: 52
Rust Preventative Coating: Yes

适用车型

CHEVROLET (2)

OE号码

品牌	号码
OE	141-6223*
