FVP
14161566

第三方数据FVP : 14161566

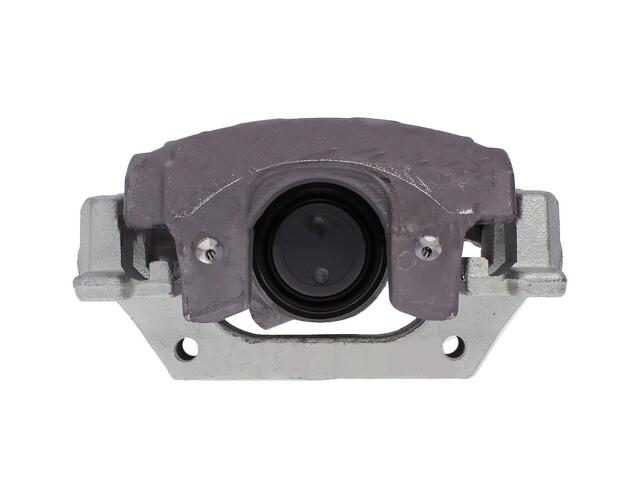

Caliper
FVP : 14161566

Abutment Clips Included: Yes
Bleeder Install Thread Count in: 4.5
Bleeder Screw Included: Yes
Bleeder Screw Thread Diameter: 10.000 MM
Bleeder Screw Thread Size: M10-1.00
Body Air Gap: 46.5mm
Bracket #: 743.45563
Bracket Air Gap: 14.0mm
Caliper Casting Material: Aluminum
Caliper Color: Gray
Caliper Manufacturer: ATE
Caliper Type: Floating
Casting Number: 8M512M089B1; 921; T0833
Inlet Fitting Type: Banjo
Inlet Thread Diameter: 10.000 MM
Inlet Thread Size: M10-1.00
Mount Spread - Ctr2Ctr: 100.0mm
Mount Thread Size mm: M10-1.50
Mounting Bracket Included: Yes
Mounting Hardware Included: No
Pad Wear Sensor Included: No
Pads Included: No
Piston Diameter: 38.000 mm
Piston Material: Steel
Piston Quantity: 1
Published Bore Size: 38
Rust Preventative Coating: Yes

适用车型

FORD (2)

OE号码

品牌	号码
OE	141-6156*
