第三方数据FVP : 14151661

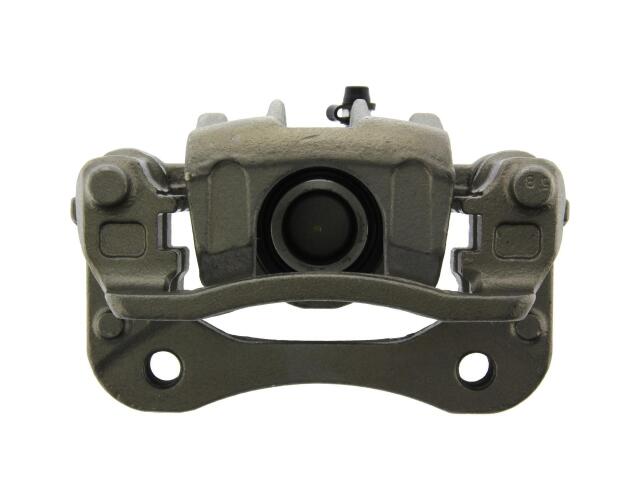

Caliper
FVP : 14151661

Abutment Clips Included: Yes
Bare Bracket Weight lbs: 1.90
Bare Caliper Body Weight lbs: 2.90
Bleeder Install Thread Count in: 4
Bleeder Screw Included: Yes
Bleeder Screw Thread Diameter: 10.000 MM
Bleeder Screw Thread Size: M10-1.00
Body Air Gap: 43.5mm
Bracket #: 743.51661
Bracket Air Gap: 15.0mm
Caliper Casting Material: Cast Iron
Caliper Color: Gray
Caliper Manufacturer: MOBIS
Caliper Type: Floating
Casting Number: 3R34; 4DJ; M1
Inlet Fitting Type: Banjo
Inlet Thread Diameter: 10.000 MM
Inlet Thread Size: M10-1.00
Mount Spread - Ctr2Ctr: 100.0mm
Mount Thread Size mm: M12-1.25
Mounting Bracket Included: Yes
Mounting Hardware Included: No
Pad Wear Sensor Included: No
Pads Included: No
Piston Diameter: 1.339 in
Piston Material: Steel
Piston Quantity: 1
Published Bore Size: 34
Rust Preventative Coating: Yes

适用车型

HYUNDAI (1)

KIA (1)

OE号码

品牌	号码
OE	141-5166*
