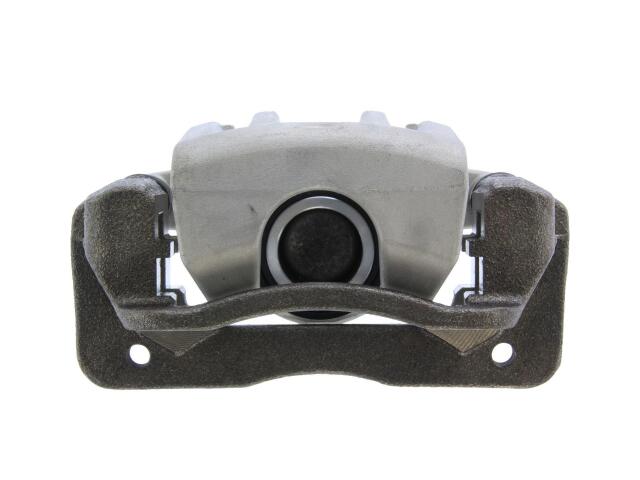

Caliper
FVP : 14151507

Abutment Clips Included: Yes
Bleeder Install Thread Count in: 5.5
Bleeder Screw Included: Yes
Bleeder Screw Thread Diameter: 10.000 MM
Bleeder Screw Thread Size: M10-1.00
Body Air Gap: 45.0mm
Bracket Air Gap: 15.5MM
Bracket Included: No
Caliper Casting Material: Aluminum
Caliper Color: Gray
Caliper Manufacturer: Mando
Caliper Type: Floating
Casting Number: BC140123
Inlet Fitting Type: Banjo
Inlet Thread Diameter: 10.000 MM
Inlet Thread Size: M10-1.00
Mount Spread - Ctr2Ctr: 140.0mm
Mount Thread Size mm: M10-1.25
Mounting Bracket Included: Yes
Mounting Hardware Included: No
Pad Wear Sensor Included: No
Pads Included: No
Piston Diameter: 43.000 mm
Piston Material: Steel
Piston Quantity: 1
Published Bore Size: 43
Rust Preventative Coating: Yes

适用车型

HYUNDAI (2)

KIA (1)

OE号码

品牌	号码
OE	141-5150*
