FVP
14151504

第三方数据FVP : 14151504

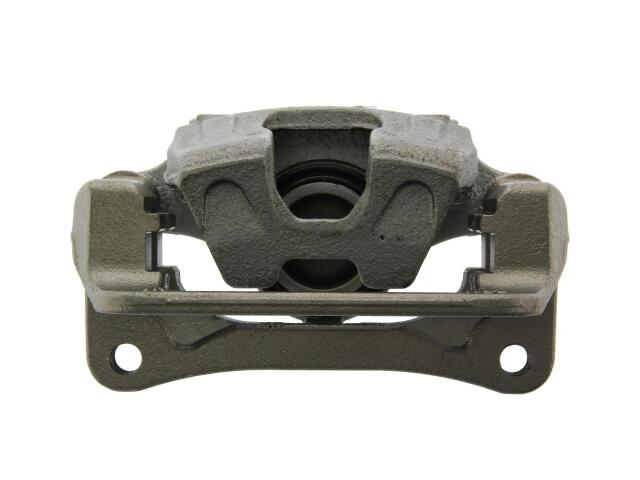

Caliper
FVP : 14151504

Abutment Clips Included: Yes
Bleeder Install Thread Count in: 4.5
Bleeder Screw Included: Yes
Bleeder Screw Thread Diameter: 10.000 MM
Bleeder Screw Thread Size: M10-1.00
Body Air Gap: 47.0mm
Bracket Air Gap: 18.0mm
Bracket Included: No
Caliper Casting Material: Aluminum / Cast Iron
Caliper Color: Gray
Caliper Manufacturer: Mando
Caliper Type: Floating
Casting Number: BC140173; BC152007
Inlet Fitting Type: Banjo
Inlet Thread Diameter: 10.000 MM
Inlet Thread Size: M10-1.00
Mount Spread - Ctr2Ctr: 140.0mm
Mount Thread Size mm: M12-1.25
Mounting Bracket Included: Yes
Mounting Hardware Included: No
Pad Wear Sensor Included: No
Pads Included: No
Piston Diameter: 1.772 IN
Piston Material: Steel
Piston Quantity: 1
Published Bore Size: 45
Rust Preventative Coating: Yes

适用车型

HYUNDAI (1)

KIA (1)

GENESIS (1)

OE号码

品牌	号码
OE	141-5150*
