FVP
14151501

第三方数据FVP : 14151501

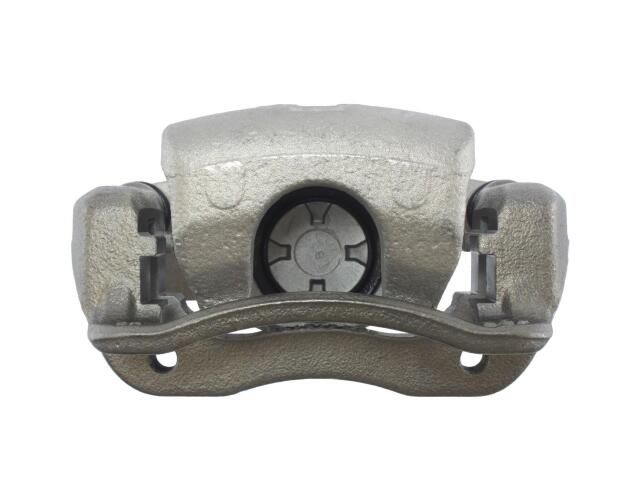

Caliper
FVP : 14151501

Abutment Clips Included: Yes
Air Gap: 100.5mm
Bleeder Install Thread Count in: 4.5
Bleeder Screw Included: Yes
Bleeder Screw Thread Diameter: 10.000 MM
Bleeder Screw Thread Size: M10-1.00
Bracket #: 743.51501
Caliper Casting Material: Aluminum
Caliper Color: Gray
Caliper Manufacturer: Mando
Caliper Type: Floating
Casting Number: BC140191
Inlet Fitting Type: Banjo
Inlet Thread Diameter: 10.000 MM
Inlet Thread Size: M10-1.00
Mount Spread - Ctr2Ctr: 100.0mm
Mount Thread Size mm: M10-1.25
Mounting Bracket Included: Yes
Mounting Hardware Included: No
Pad Wear Sensor Included: No
Pads Included: No
Piston Diameter: 34.000 MM
Piston Material: Steel
Piston Quantity: 1
Published Bore Size: 34
Rust Preventative Coating: Yes

适用车型

HYUNDAI (1)

OE号码

品牌	号码
OE	141-5150*
