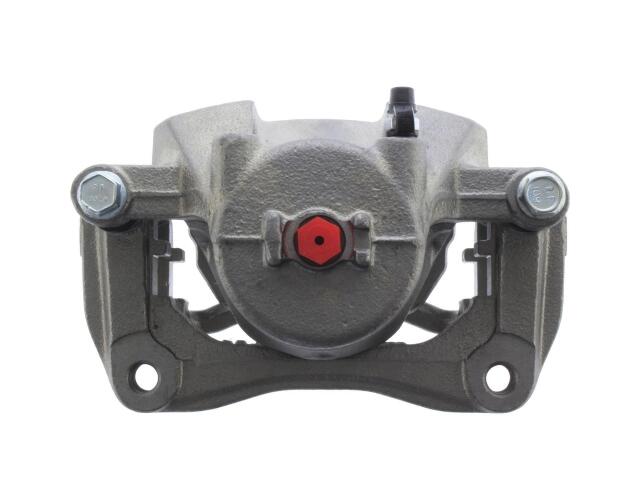

Caliper
FVP : 14151032

Abutment Clips Included: Yes
Bleeder Install Thread Count in: 4
Bleeder Screw Included: Yes
Bleeder Screw Thread Diameter: 10.000 MM
Bleeder Screw Thread Size: M10-1.00
Body Air Gap: 66.0mm
Bracket #: 743.50001
Bracket Air Gap: 34.0mm
Caliper Casting Material: Cast Iron
Caliper Color: Gray
Caliper Manufacturer: Mando
Caliper Type: Floating
Casting Number: 325; 63.5
Inlet Fitting Type: Banjo
Inlet Thread Diameter: 10.000 MM
Inlet Thread Size: M10-1.00
Mount Spread - Ctr2Ctr: 140.0mm
Mount Thread Size mm: M12-1.25
Mounting Bracket Included: Yes
Mounting Hardware Included: No
Pad Wear Sensor Included: No
Pads Included: No
Piston Diameter: 2.500 in
Piston Material: Steel
Piston Quantity: 1
Published Bore Size: 63.5
Rust Preventative Coating: Yes

适用车型

HYUNDAI (1)

OE号码

品牌	号码
OE	141-5103*
