第三方数据FVP : 14151004

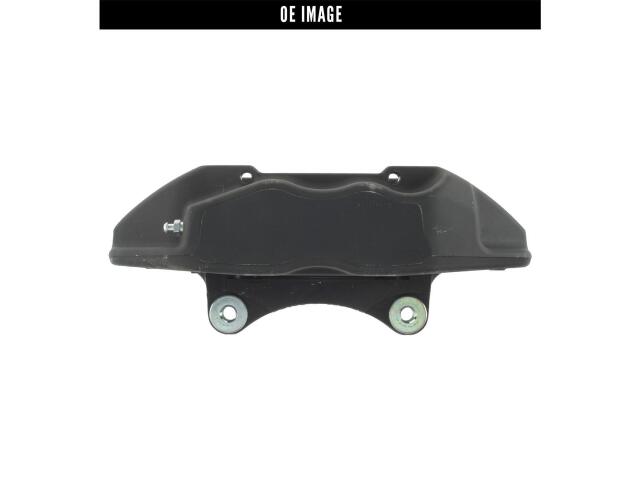

Caliper
FVP : 14151004

Abutment Clips Included: Yes
Bleeder Install Thread Count in: 6
Bleeder Screw Included: Yes
Bleeder Screw Thread Diameter: 10.000 MM
Bleeder Screw Thread Size: M10-1.00
Body Air Gap: 67.0mm
Bracket Air Gap: 34.5mm
Bracket Included: No
Caliper Casting Material: Aluminum
Caliper Color: Gray
Caliper Manufacturer: Mando
Caliper Type: Fixed
Casting Number: 19L; BC14020300; MANDO19L; V119L; 325; 63.5
Inlet Fitting Type: Banjo
Inlet Thread Diameter: 10.000 MM
Inlet Thread Size: M10-1.00
Mount Spread - Ctr2Ctr: 140.0mm
Mount Thread Size mm: M12-1.25
Mounting Bracket Included: No
Mounting Hardware Included: No
Pad Wear Sensor Included: No
Pads Included: No
Piston Diameter: 45.000 mm
Piston Material: Steel
Piston Quantity: 4
Published Bore Size: 45
Rust Preventative Coating: Yes

适用车型

KIA (1)

OE号码

品牌	号码
OE	141-5100*
