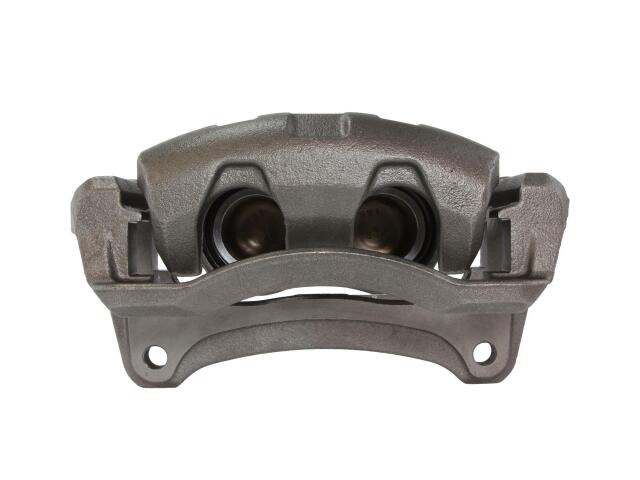

Caliper
FVP : 14147056

Abutment Clips Included: Yes
Bare Bracket Weight lbs: 3.50
Bare Caliper Body Weight lbs: 7.90
Bleeder Install Thread Count in: 4.5
Bleeder Screw Included: Yes
Bleeder Screw Thread Diameter: 10.000 MM
Bleeder Screw Thread Size: M10-1.25
Body Air Gap: 67.5mm
Bracket #: 743.47055
Bracket Air Gap: 33.0mm
Caliper Casting Material: Cast Iron
Caliper Color: Gray
Caliper Manufacturer: Nissin
Caliper Type: Floating
Casting Number: 12CLT
Inlet Fitting Type: Banjo
Inlet Thread Diameter: 10.000 MM
Inlet Thread Size: M10-1.00
Mount Spread - Ctr2Ctr: 154.0mm
Mount Thread Size mm: M12-1.25
Mounting Bracket Included: Yes
Mounting Hardware Included: No
Pad Wear Sensor Included: No
Pads Included: No
Piston Diameter: 43.000 mm
Piston Material: Steel
Piston Quantity: 2
Published Bore Size: 43
Rust Preventative Coating: Yes

适用车型

SUBARU (1)

OE号码

品牌	号码
OE	141-4705*
