第三方数据FVP : 14146103

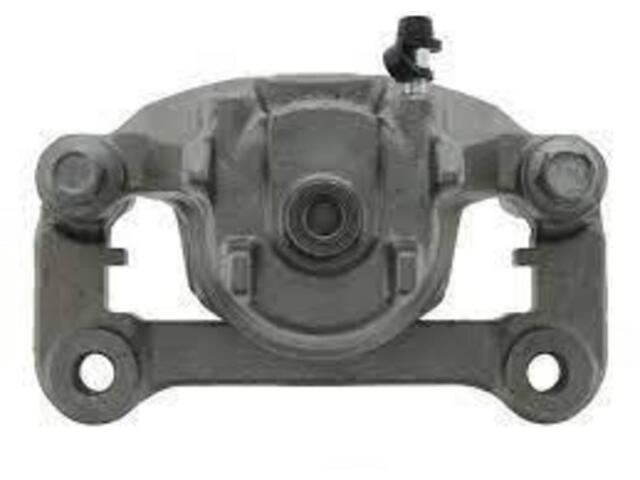

Caliper
FVP : 14146103

Abutment Clips Included: Yes
Bare Bracket Weight lbs: 1.45
Bare Caliper Body Weight lbs: 3.80
Bleeder Install Thread Count in: 5.5
Bleeder Screw Included: Yes
Bleeder Screw Thread Diameter: 7.000 MM
Bleeder Screw Thread Size: M7-1.00
Body Air Gap: 49.5mm
Bracket #: 743.46103
Caliper Casting Material: Cast Iron
Caliper Color: Gray
Caliper Manufacturer: Akebono
Caliper Type: Floating
Casting Number: 5108
Inlet Fitting Type: Banjo
Inlet Thread Diameter: 10.000 MM
Inlet Thread Size: M10-1.00
Mount Spread - Ctr2Ctr: 128.0mm
Mount Thread Size mm: M12-1.25
Mounting Bracket Included: Yes
Mounting Hardware Included: No
Pad Wear Sensor Included: No
Pads Included: No
Piston Diameter: 2.008 in
Piston Material: Steel
Piston Quantity: 1
Published Bore Size: 51
Rust Preventative Coating: Yes

适用车型

MITSUBISHI (2)

OE号码

品牌	号码
OE	141-4610*
