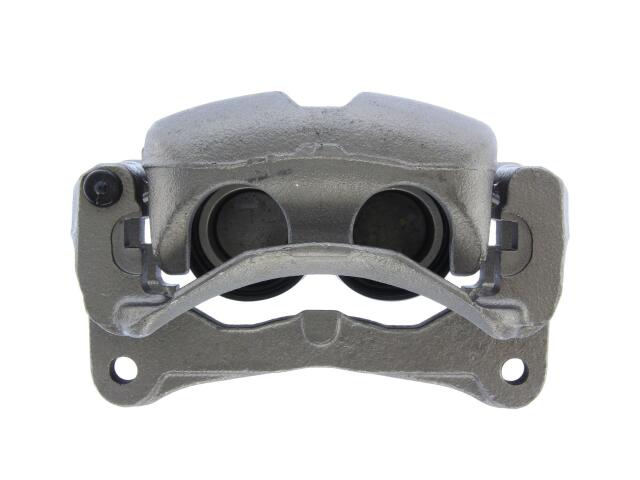

Caliper
FVP : 14146075

Abutment Clips Included: Yes
Air Gap: 100.5mm
Bleeder Install Thread Count in: 4.5
Bleeder Screw Included: Yes
Bleeder Screw Thread Diameter: 8.000 MM
Bleeder Screw Thread Size: M8-1.00
Bracket #: 743.46075
Caliper Casting Material: Cast Iron
Caliper Color: Gray
Caliper Manufacturer: Sumitomo
Caliper Type: Floating
Casting Number: FS13W
Inlet Fitting Type: Banjo
Inlet Thread Diameter: 10.000 MM
Inlet Thread Size: M10-1.00
Mounting Bracket Included: Yes
Mounting Hardware Included: No
Pad Wear Sensor Included: No
Pads Included: No
Piston Diameter: 45.500 mm
Piston Material: Steel
Piston Quantity: 2
Published Bore Size: 45.5
Rust Preventative Coating: Yes

适用车型

MITSUBISHI (1)

OE号码

品牌	号码
OE	141-4607*
