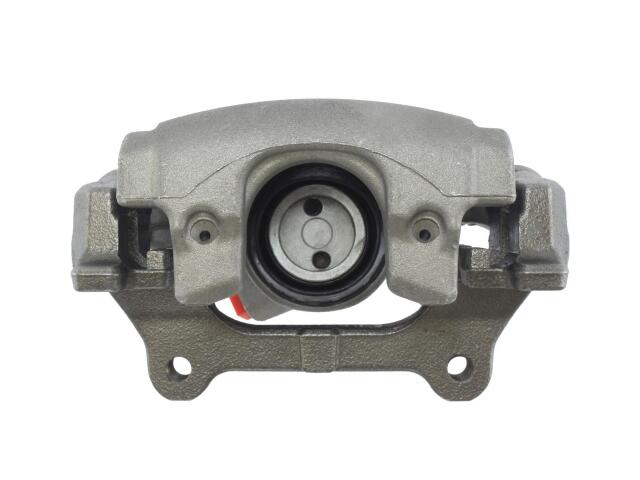

Caliper
FVP : 14145570

Abutment Clips Included: Yes
Bleeder Install Thread Count in: 4.5
Bleeder Screw Included: Yes
Bleeder Screw Thread Diameter: 10.000 MM
Bleeder Screw Thread Size: M10-1.00
Bracket #: 743.45565
Caliper Casting Material: Aluminum
Caliper Color: Gray
Caliper Manufacturer: ATE
Caliper Type: Floating
Casting Number: 819; 941
Inlet Fitting Type: Banjo
Inlet Thread Diameter: 10.000 MM
Inlet Thread Size: M10-1.00
Mount Thread Size mm: M10-1.50
Mounting Bracket Included: Yes
Mounting Hardware Included: No
Pad Wear Sensor Included: No
Pads Included: No
Piston Diameter: 38.000 mm
Piston Material: Steel
Piston Quantity: 1
Published Bore Size: 38
Rust Preventative Coating: Yes

适用车型

MAZDA (1)

OE号码

品牌	号码
OE	141-4557*
