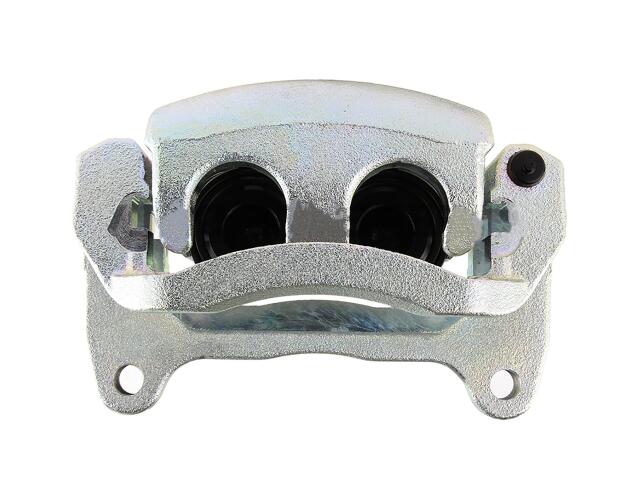

Caliper
FVP : 14145131

Abutment Clips Included: Yes
Bare Bracket Weight lbs: 4.05
Bare Caliper Body Weight lbs: 8.00
Bleeder Install Thread Count in: 6
Bleeder Screw Included: Yes
Bleeder Screw Thread Diameter: 0.3125 IN
Bleeder Screw Thread Size: 5/16"-24
Body Air Gap: 66.5mm
Bracket #: 743.45132
Bracket Air Gap: 33.0mm
Caliper Casting Material: Cast Iron
Caliper Color: Gray
Caliper Manufacturer: Advics
Caliper Type: Floating
Casting Number: F13WT; K0089
Inlet Fitting Type: Banjo
Inlet Thread Diameter: 10.000 MM
Inlet Thread Size: M10-1.00
Mount Spread - Ctr2Ctr: 160.0mm
Mount Thread Size mm: M14-1.25
Mounting Bracket Included: Yes
Mounting Hardware Included: No
Pad Wear Sensor Included: No
Pads Included: No
Piston Diameter: 1.791 in
Piston Material: Phenolic
Piston Quantity: 2
Published Bore Size: 45.5
Rust Preventative Coating: Yes

适用车型

MAZDA (2)

OE号码

品牌	号码
OE	141-4513*
