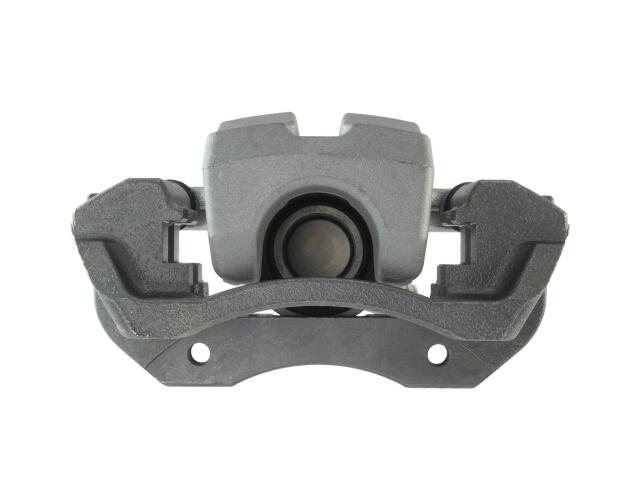

Caliper
FVP : 14144659

Abutment Clips Included: Yes
Air Gap: 100.5mm
Bleeder Install Thread Count in: 6.5
Bleeder Screw Included: Yes
Bleeder Screw Thread Diameter: 7.000 MM
Bleeder Screw Thread Size: M7-1.00
Body Air Gap: 48.5mm
Bracket #: 743.44659
Bracket Air Gap: 17.0mm
Caliper Casting Material: Aluminum
Caliper Color: Gray
Caliper Manufacturer: Advics
Caliper Type: Floating
Inlet Fitting Type: Banjo
Inlet Thread Diameter: 10.000 MM
Inlet Thread Size: M10-1.00
Mount Spread - Ctr2Ctr: 100.0mm
Mount Thread Size mm: M10-1.25
Mounting Bracket Included: Yes
Mounting Hardware Included: No
Pad Wear Sensor Included: No
Pads Included: No
Piston Diameter: 1.594 IN
Piston Material: Steel
Piston Quantity: 1
Published Bore Size: 40.5
Rust Preventative Coating: Yes

适用车型

TOYOTA (1)

OE号码

品牌	号码
OE	141-4465*
