FVP
14144310

第三方数据FVP : 14144310

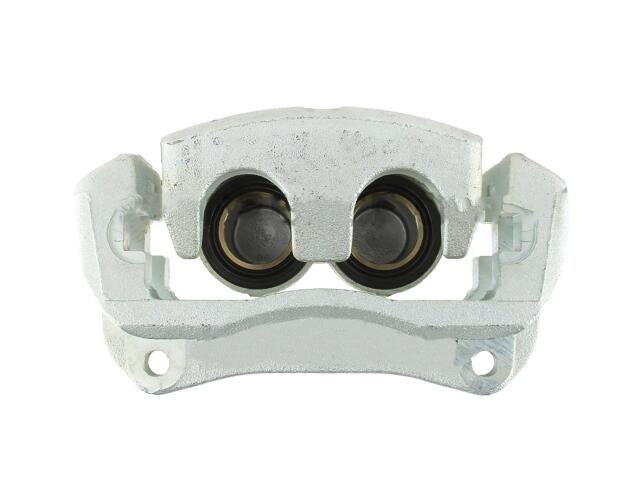

Caliper
FVP : 14144310

Abutment Clips Included: Yes
Bare Bracket Weight lbs: 4.80
Bare Caliper Body Weight lbs: 8.35
Bleeder Install Thread Count in: 6
Bleeder Screw Included: Yes
Bleeder Screw Thread Diameter: 7.000 MM
Bleeder Screw Thread Size: M7-1.00
Body Air Gap: 67.5mm
Bracket #: 743.44310
Bracket Air Gap: 33.0mm
Caliper Casting Material: Cast Iron
Caliper Color: Gray
Caliper Manufacturer: Akebono
Caliper Type: Floating
Casting Number: 4533
Inlet Fitting Type: Banjo
Inlet Thread Diameter: 10.000 MM
Inlet Thread Size: M10-1.00
Mount Spread - Ctr2Ctr: 159.0mm
Mount Thread Size mm: M14-1.50
Mounting Bracket Included: Yes
Mounting Hardware Included: No
Pad Wear Sensor Included: No
Pads Included: No
Piston Diameter: 44.500 MM
Piston Material: Steel
Piston Quantity: 2
Published Bore Size: 44.5
Rust Preventative Coating: Yes

适用车型

LEXUS (3)

OE号码

品牌	号码
OE	141-4431*
