FVP
14144200

第三方数据FVP : 14144200

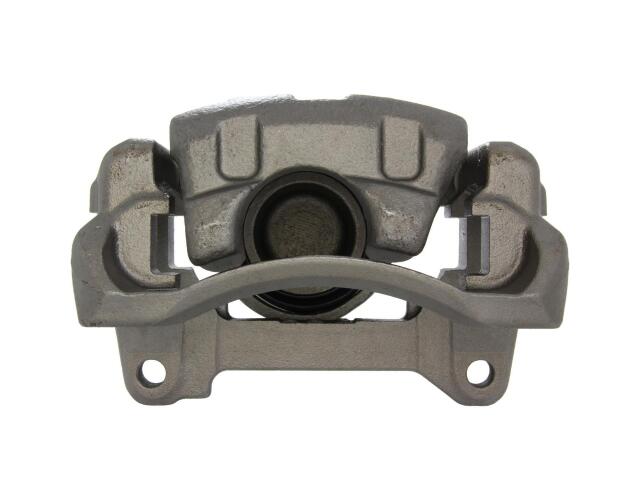

Caliper
FVP : 14144200

Abutment Clips Included: Yes
Air Gap: 100.5mm
Bleeder Screw Included: Yes
Bleeder Screw Thread Diameter: 7.000 MM
Bleeder Screw Thread Size: M7-1.00
Bracket #: 147.442
Caliper Casting Material: Cast Iron
Caliper Color: Gray
Caliper Type: Floating
Casting Number: 57-25; 5725
Inlet Fitting Type: Banjo
Inlet Thread Diameter: 10.000 MM
Inlet Thread Size: M10-1.00
Mount Thread Size mm: M12-1.25
Mounting Bracket Included: Yes
Mounting Hardware Included: No
Pad Wear Sensor Included: No
Pads Included: No
Piston Diameter: 2.244 in
Piston Material: Steel
Piston Quantity: 1
Published Bore Size: 57
Rust Preventative Coating: Yes

适用车型

TOYOTA (1)

SCION (1)

OE号码

品牌	号码
OE	141-4420*
