FVP
14140607

第三方数据FVP : 14140607

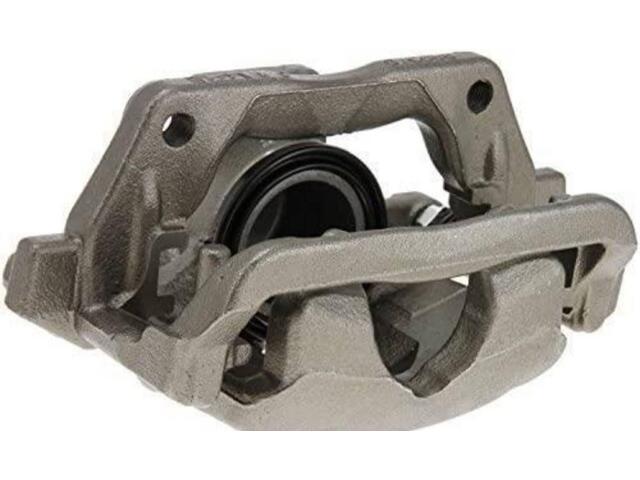

Caliper
FVP : 14140607

Abutment Clips Included: Yes
Bare Bracket Weight lbs: 2.10
Bare Caliper Body Weight lbs: 4.25
Bleeder Install Thread Count in: 4.5
Bleeder Screw Included: Yes
Bleeder Screw Thread Diameter: 10.000 MM
Bleeder Screw Thread Size: M10-1.00
Body Air Gap: 42.0mm
Bracket #: 743.40607
Bracket Air Gap: 13.5mm
Caliper Casting Material: Cast Iron
Caliper Color: Gray
Caliper Manufacturer: ATE
Caliper Type: Floating
Inlet Fitting Type: Banjo
Inlet Thread Diameter: 10.000 MM
Inlet Thread Size: M10-1.00
Mount Spread - Ctr2Ctr: 98.0mm
Mount Thread Size mm: M12-1.25
Mounting Bracket Included: Yes
Mounting Hardware Included: No
Pad Wear Sensor Included: No
Pads Included: No
Piston Diameter: 1.496 in
Piston Material: Steel
Piston Quantity: 1
Published Bore Size: 38
Rust Preventative Coating: Yes

适用车型

ACURA (2)

OE号码

品牌	号码
OE	141-4060*
