第三方数据FVP : 14140540

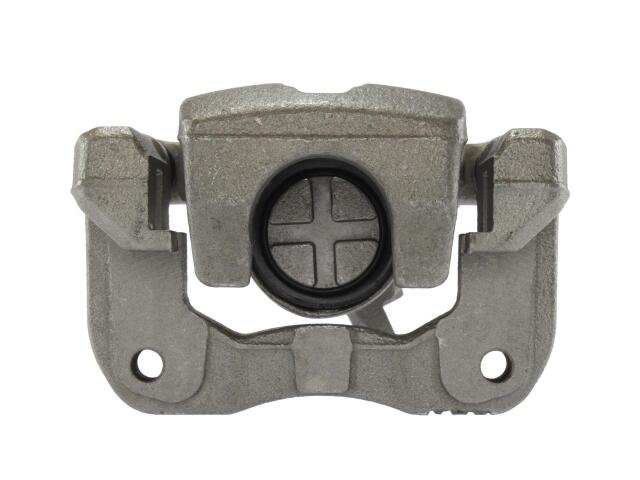

Caliper
FVP : 14140540

Abutment Clips Included: Yes
Air Gap: 100.5mm
Bare Caliper Body#: 741.40540
Bleeder Install Thread Count in: 5
Bleeder Screw Included: Yes
Bleeder Screw Thread Diameter: 10.000 MM
Bleeder Screw Thread Size: M10-1.25
Body Air Gap: 43.0mm
Bracket #: 743.40539
Bracket Air Gap: 14.0mm
Caliper Casting Material: Cast Iron
Caliper Color: Gray
Caliper Manufacturer: Nissin
Caliper Type: Floating
Casting Number: 9CLP14S
Inlet Fitting Type: Banjo
Inlet Thread Diameter: 10.000 MM
Inlet Thread Size: M10-1.00
Mount Spread - Ctr2Ctr: 98.0mm
Mount Thread Size mm: M10-1.25
Mounting Bracket Included: Yes
Mounting Hardware Included: No
Pad Wear Sensor Included: No
Pads Included: No
Piston Diameter: 1.339 in
Piston Material: Steel
Piston Quantity: 1
Published Bore Size: 34
Rust Preventative Coating: Yes

适用车型

HONDA (1)

ACURA (2)

OE号码

品牌	号码
OE	141-4054*
