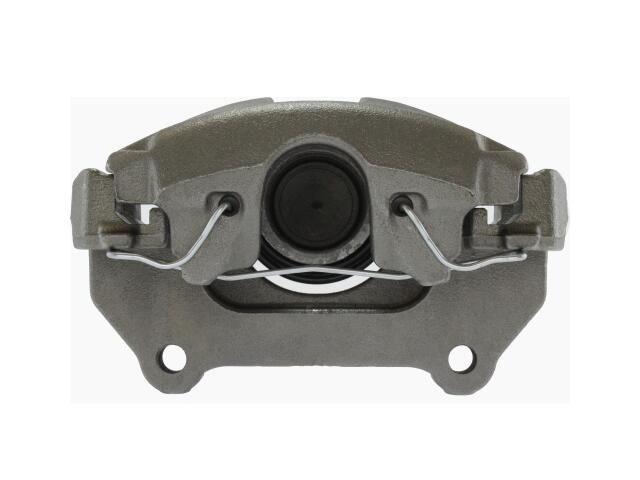

Caliper
FVP : 14138031

Abutment Clips Included: Yes
Air Gap: 100.5mm
Bleeder Screw Included: Yes
Bleeder Screw Thread Diameter: 8.000 MM
Bleeder Screw Thread Size: M8-1.25
Bracket #: 147.38031
Caliper Casting Material: Cast Iron
Caliper Color: Gray
Caliper Type: Floating
Casting Number: 828; 920; 9824; 9884
Inlet Fitting Type: Banjo
Inlet Thread Diameter: 10.000 MM
Inlet Thread Size: M10-1.50
Mount Thread Size mm: M14-2.00
Mounting Bracket Included: Yes
Mounting Hardware Included: No
Pad Wear Sensor Included: No
Pads Included: No
Piston Diameter: 2.244 in
Piston Material: Steel
Piston Quantity: 1
Published Bore Size: 57
Rust Preventative Coating: Yes

适用车型

SAAB (1)

OE号码

品牌	号码
OE	141-3803*
