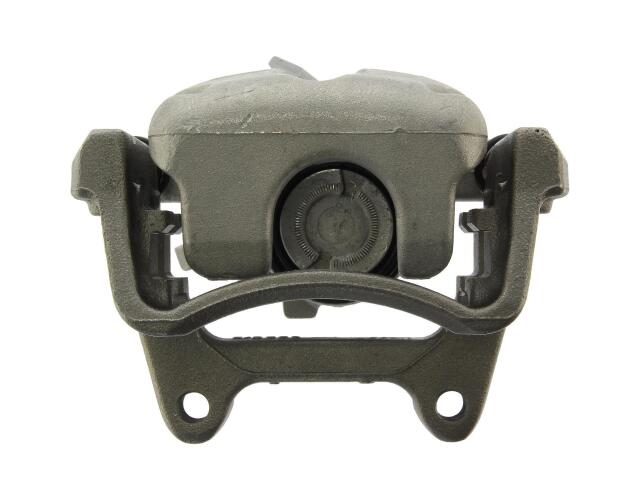

Caliper
FVP : 14133599

Abutment Clips Included: Yes
Air Gap: 100.5mm
Bleeder Screw Included: Yes
Bleeder Screw Thread Diameter: 10.000 MM
Bleeder Screw Thread Size: M10-1.00
Bracket Included: No
Caliper Casting Material: Aluminum
Caliper Color: Gray
Caliper Manufacturer: TRW
Caliper Type: Floating
Casting Number: 1516; 9225/B; VWAGTRW; 609; 9225
Inlet Thread Diameter: 12.000 MM
Inlet Thread Size: M12-1.0
Mount Thread Size mm: M12-1.50
Mounting Bracket Included: Yes
Mounting Hardware Included: No
Pad Wear Sensor Included: No
Pads Included: No
Piston Diameter: 41.000 MM
Piston Material: Steel
Piston Quantity: 1
Published Bore Size: 41
Rust Preventative Coating: Yes

适用车型

VOLKSWAGEN (1)

AUDI (1)

OE号码

品牌	号码
OE	141-3359*
