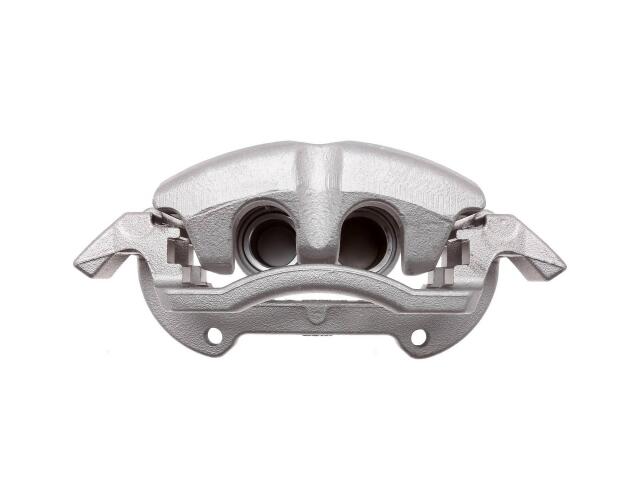

Caliper
FVP : 14133223

Abutment Clips Included: Yes
Bare Bracket Weight lbs: 5.05
Bare Caliper Body Weight lbs: 12.30
Bleeder Install Thread Count in: 4.5
Bleeder Screw Included: Yes
Bleeder Screw Thread Diameter: 10.000 MM
Bleeder Screw Thread Size: M10-1.00
Body Air Gap: 70.0mm
Bracket #: 743.33223
Bracket Air Gap: 34.0mm
Caliper Casting Material: Cast Iron
Caliper Color: Gray
Caliper Manufacturer: TRW
Caliper Type: Floating
Casting Number: 60158; 60158F; 4845; 359048; JS2
Inlet Fitting Type: Banjo
Inlet Thread Diameter: 10.000 MM
Inlet Thread Size: M10-1.50
Mount Spread - Ctr2Ctr: 146.0mm
Mount Thread Size mm: M14-1.50
Mounting Bracket Included: Yes
Mounting Hardware Included: No
Pad Wear Sensor Included: No
Pads Included: No
Piston Material: Steel
Piston Quantity: 2
Published Bore Size: 45/48
Rust Preventative Coating: Yes

适用车型

VOLKSWAGEN (2)

OE号码

品牌	号码
OE	141-3322*
