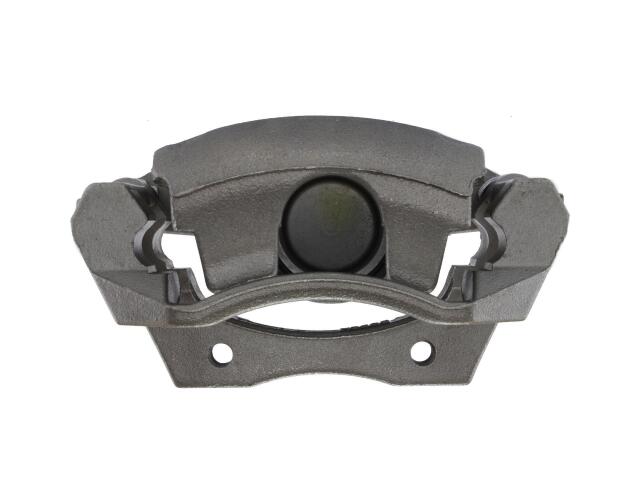

Caliper
FVP : 14120015

Abutment Clips Included: Yes
Air Gap: 100.5mm
Bleeder Screw Included: Yes
Bleeder Screw Thread Diameter: 10.000 MM
Bleeder Screw Thread Size: M10-1.00
Bracket Included: No
Caliper Casting Material: Cast Iron
Caliper Color: Gray
Caliper Type: Floating
Casting Number: 0204Y01125
Inlet Fitting Type: Bubble
Inlet Thread Diameter: 10.000 MM
Inlet Thread Size: M10-1.00
Mount Thread Size mm: M11-1.75
Mounting Bracket Included: Yes
Mounting Hardware Included: No
Pad Wear Sensor Included: No
Pads Included: No
Piston Diameter: 2.244 in
Piston Material: Steel
Piston Quantity: 1
Published Bore Size: 57
Rust Preventative Coating: Yes

适用车型

FORD (1)

JAGUAR (1)

OE号码

品牌	号码
OE	141-2001*
