CENTRIC
14162230

第三方数据CENTRIC : 14162230

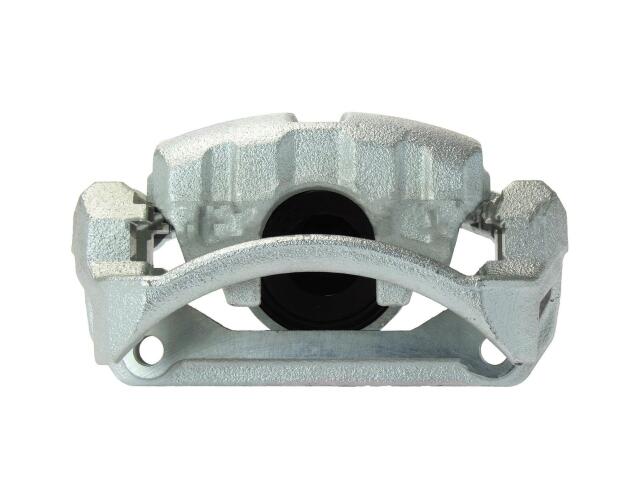

Caliper
CENTRIC : 14162230

Abutment Clips Included: Yes
Axle Leading/Trailing: Leading
Bleeder Install Thread Count (IN): 4.5
Bleeder Screw Included: Yes
Bleeder Thread Diameter (MM): 10.000
Bracket Required: Yes
Caliper Casting Material: Cast Iron
Caliper Color: Gray
Caliper Manufacturer: MOBIS
Caliper Type: Floating
Casting Number: HM11
Finish: Rust Preventative
Inlet Fitting Type: Banjo
Inlet Thread Diameter (MM): 10.000
Mount Spread - Center to Center: 128.0mm
Mount Thread Size (MM): M12-1.25
Mounting Bracket Included: Yes
Mounting Hardware Included: No
New or Ramanufactured: Remanufactured
Pad Wear Sensor Included: No
Pads Included: No
Piston Diameter (IN): 2.047
Piston Diameter (mm): 52.000
Piston Material: Phenolic
Piston Quantity: 1
Rust Preventative Coating: Yes

适用车型

CHEVROLET (2)

参考号

厂商	号码
BRAKEBEST CALIPERS	141.6223*
CASTING NUMBERS	1359141*

厂商	号码
CASTING NUMBERS	HM1*
CASTING NUMBERS	HM*

厂商	号码
NAPA	2428344*

OE号码

品牌	号码
OEM PART NUMBER	1359142*
