CENTRIC
14161162

第三方数据CENTRIC : 14161162

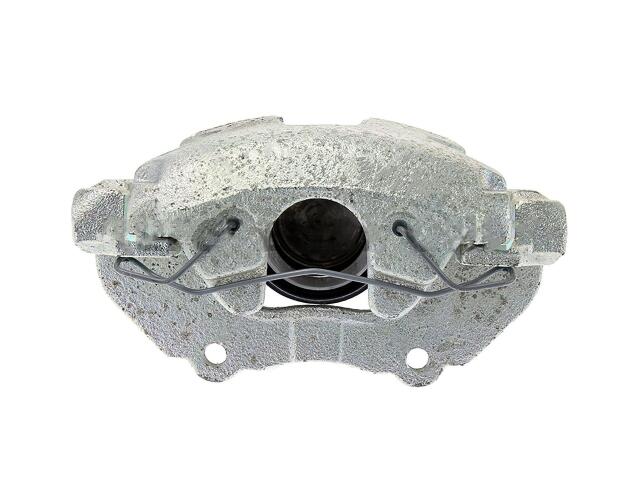

Caliper
CENTRIC : 14161162

Abutment Clips Included: Yes
Axle Leading/Trailing: Leading
Bleeder Install Thread Count (IN): 4.5
Bleeder Screw Included: Yes
Bleeder Thread Diameter (MM): 8.000
Bracket Required: Yes
Caliper Casting Material: Cast Iron
Caliper Color: Gray
Caliper Manufacturer: ATE
Caliper Type: Floating
Casting Number: C17; 709; GSSBA; 29617
Finish: Rust Preventative
Inlet Fitting Type: Banjo
Inlet Thread Diameter (MM): 10.000
Mount Spread - Center to Center: 90.0mm
Mount Thread Size (MM): M12-1.50
Mounting Bracket Included: Yes
Mounting Hardware Included: No
New or Ramanufactured: Remanufactured
Pad Wear Sensor Included: No
Pads Included: No
Piston Diameter (IN): 2.244
Piston Diameter (mm): 57.000
Piston Material: Steel
Piston Quantity: 1
Rust Preventative Coating: Yes

适用车型

FORD (1)

参考号

厂商	号码
BRAKEBEST CALIPERS	141.6116*
CASTING NUMBERS	GSSB*

厂商	号码
CASTING NUMBERS	70*
CASTING NUMBERS	C1*

厂商	号码
CASTING NUMBERS	CN1Z2B292*
NAPA	2428338*

OE号码

品牌	号码
OE	141.6116*

品牌	号码
OEM PART NUMBER	GN1Z2B121*
