CENTRIC
14150509

第三方数据CENTRIC : 14150509

Caliper

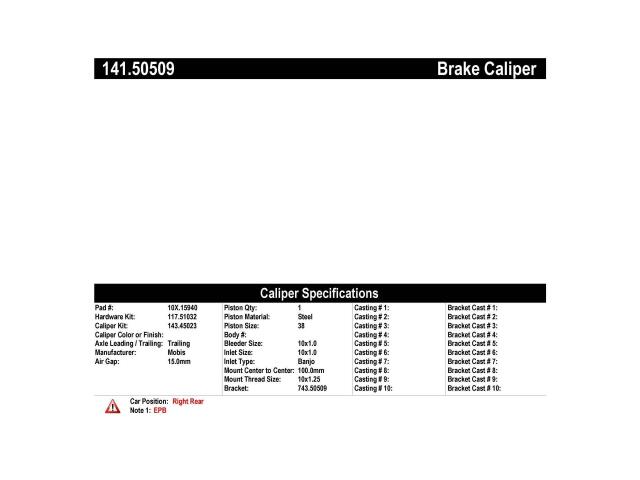

CENTRIC : 14150509

Abutment Clips Included: Yes
Axle Leading/Trailing: Trailing
Bleeder Install Thread Count (IN): 4.5
Bleeder Screw Included: Yes
Bleeder Thread Diameter (MM): 10.000
Bracket Required: Yes
Caliper Casting Material: Cast Iron
Caliper Color: Gray
Caliper Manufacturer: MOBIS
Caliper Type: Floating
Finish: Rust Preventative
Inlet Fitting Type: Banjo
Inlet Thread Diameter (MM): 10.000
Mount Spread - Center to Center: 100.0mm
Mount Thread Size (MM): M10-1.25
Mounting Bracket Included: Yes
Mounting Hardware Included: No
New or Ramanufactured: Remanufactured
Pad Wear Sensor Included: No
Pads Included: No
Piston Diameter (IN): 1.496
Piston Diameter (mm): 38.000
Piston Material: Steel
Piston Quantity: 1
Rust Preventative Coating: Yes

适用车型

KIA (1)

参考号

厂商	号码
AUTOPART INTERNATIONAL	1405-58725*

厂商	号码
BRAKEBEST CALIPERS	141.5050*

厂商	号码
NAPA	2428322*

OE号码

品牌	号码
OEM PART NUMBER	58230E400*

品牌	号码
OEM PART NUMBER	58311E4A0*
