第三方数据CENTRIC : 14145132

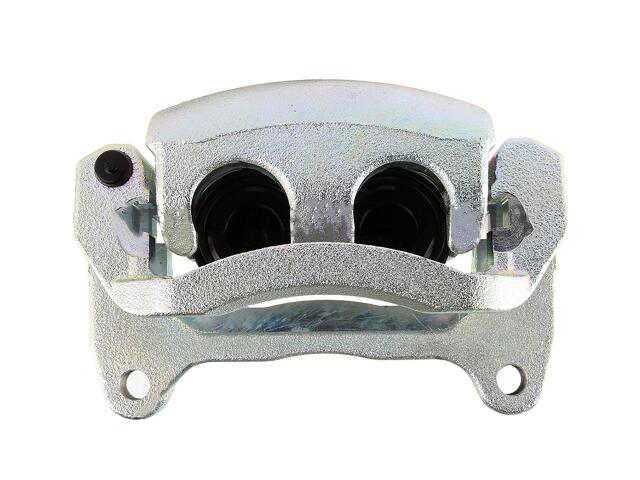

Caliper
CENTRIC : 14145132

Abutment Clips Included: Yes
Axle Leading/Trailing: Leading
Bleeder Install Thread Count (IN): 6
Bleeder Screw Included: Yes
Bleeder Thread Diameter (IN): 0.3125
Bracket Required: Yes
Caliper Casting Material: Cast Iron
Caliper Color: Gray
Caliper Manufacturer: Advics
Caliper Type: Floating
Casting Number: F13WT; K0089
Finish: Rust Preventative
Inlet Fitting Type: Banjo
Inlet Thread Diameter (MM): 10.000
Mount Spread - Center to Center: 160.0mm
Mount Thread Size (MM): M14-1.25
Mounting Bracket Included: Yes
Mounting Hardware Included: No
New or Ramanufactured: Remanufactured
Pad Wear Sensor Included: No
Pads Included: No
Piston Diameter (IN): 1.791
Piston Diameter (mm): 45.500
Piston Material: Phenolic
Piston Quantity: 2
Rust Preventative Coating: Yes

适用车型

MAZDA (2)

参考号

厂商	号码
BRAKEBEST CALIPERS	141.4513*
CASTING NUMBERS	1*

厂商	号码
CASTING NUMBERS	F13W*
CASTING NUMBERS	K008*

厂商	号码
NAPA	2428310*

OE号码

品牌	号码
OEM PART NUMBER	TKY83399*

品牌	号码
OEM PART NUMBER	TKY83399Z*
