CENTRIC
14144695

第三方数据CENTRIC : 14144695

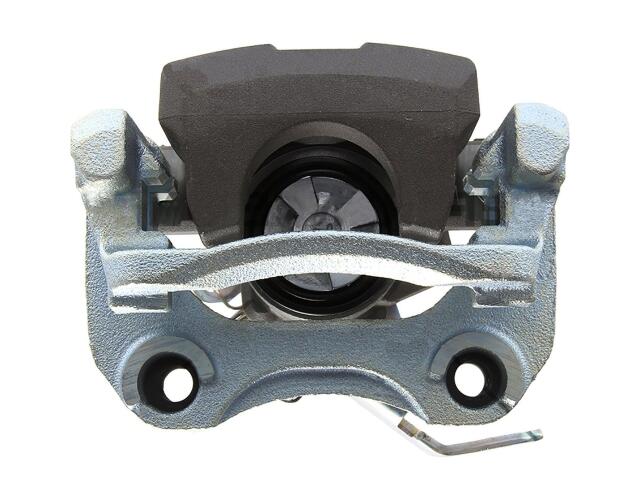

Caliper
CENTRIC : 14144695

Abutment Clips Included: Yes
Axle Leading/Trailing: Trailing
Bleeder Install Thread Count (IN): 5
Bleeder Screw Included: Yes
Bleeder Thread Diameter (MM): 10.000
Bracket Required: Yes
Caliper Casting Material: Aluminum
Caliper Color: Gray
Caliper Manufacturer: Tokico
Caliper Type: Floating
Finish: Rust Preventative
Inlet Fitting Type: Banjo
Inlet Thread Diameter (MM): 10.000
Mount Spread - Center to Center: 90.0mm
Mount Thread Size (MM): M12-1.25
Mounting Bracket Included: Yes
Mounting Hardware Included: No
New or Ramanufactured: Remanufactured
Pad Wear Sensor Included: No
Pads Included: No
Piston Diameter (IN): 1.496
Piston Diameter (mm): 38.000
Piston Material: Steel
Piston Quantity: 1
Rust Preventative Coating: Yes

适用车型

TOYOTA (2)

参考号

厂商	号码
ADVANCE/CARQUEST WEAREVER BRK CALIPER	19-B734*
BRAKEBEST CALIPERS	141.4469*

厂商	号码
CARQUEST WEAREVER BRAKE CALIPER	19-B734*
CASTING NUMBERS	478214711*

厂商	号码
NAPA	2428306*

OE号码

品牌	号码
OEM PART NUMBER	478304711*

品牌	号码
OEM PART NUMBER	478304711*
