CENTRIC
14144689

第三方数据CENTRIC : 14144689

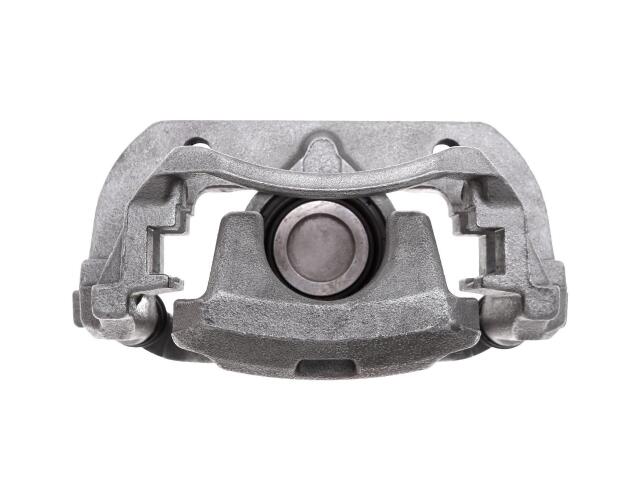

Caliper
CENTRIC : 14144689

Abutment Clips Included: Yes
Axle Leading/Trailing: Trailing
Bleeder Install Thread Count (IN): 4.5
Bleeder Screw Included: Yes
Bleeder Thread Diameter (MM): 7.000
Bracket Required: Yes
Caliper Casting Material: Cast Iron
Caliper Color: Gray
Caliper Manufacturer: Advics
Caliper Type: Floating
Finish: Rust Preventative
Inlet Fitting Type: Banjo
Inlet Thread Diameter (MM): 10.000
Mount Spread - Center to Center: 100.0mm
Mount Thread Size (MM): M12-1.25
Mounting Bracket Included: Yes
Mounting Hardware Included: No
New or Ramanufactured: Remanufactured
Pad Wear Sensor Included: No
Pads Included: No
Piston Diameter (IN): 1.594
Piston Diameter (mm): 40.500
Piston Material: Steel
Piston Quantity: 1
Rust Preventative Coating: Yes

适用车型

LEXUS (3)

TOYOTA (4)

参考号

厂商	号码
BRAKEBEST CALIPERS	141.4468*
CASTING NUMBERS	53*

厂商	号码
CASTING NUMBERS	478211003*
CASTING NUMBERS	478217801*

厂商	号码
NAPA	2428306*

OE号码

品牌	号码
OEM PART NUMBER	478307801*
