ASTRA
18R1429

第三方数据ASTRA : 18R1429

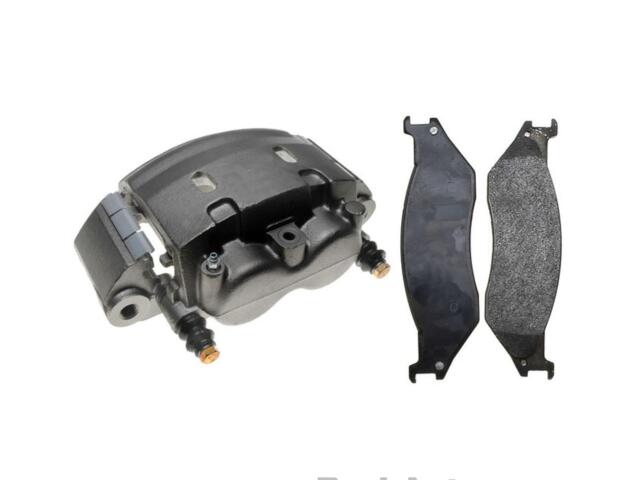

Caliper
ASTRA : 18R1429

Bleeder Thread Diameter: 3/8"-24
Caliper Casting Material: Cast Iron
Caliper Color: Natural
Caliper Slides Included: Yes
Caliper Type: Floating
Casting Material: Cast Iron
Finish: Plain
Friction Material: Metallic
Friction Material Composition: Metallic
Height (IN): 4.75
Inlet Fitting Type: Female
Inlet Thread Diameter (IN): 0.375
Inlet Thread Diameter (MM): 9.53
Length (IN): 9.38
Mounting Bolt Thread Pitch (MM): 2.000
Mounting Bracket Included: Yes
Mounting Hardware Included: Yes
Mounting Hole Diameter (IN): 16
Pad Wear Sensor Included: No
Pads Included: Yes
Piston 1 Diameter (IN): 2.4
Piston 1 Diameter (MM): 61
Piston 2 Diameter (IN): 2.4
Piston 2 Diameter (MM): 61
Weight (lb): 25
Width (IN): 6.25

适用车型

FORD (1)

OE号码

品牌	号码
OE	8899729*
